How Many “U’s” Does My Data Center Server Rack Need?

I have seen a new server room look ready, then fail at installation because the rack had no real empty space left.

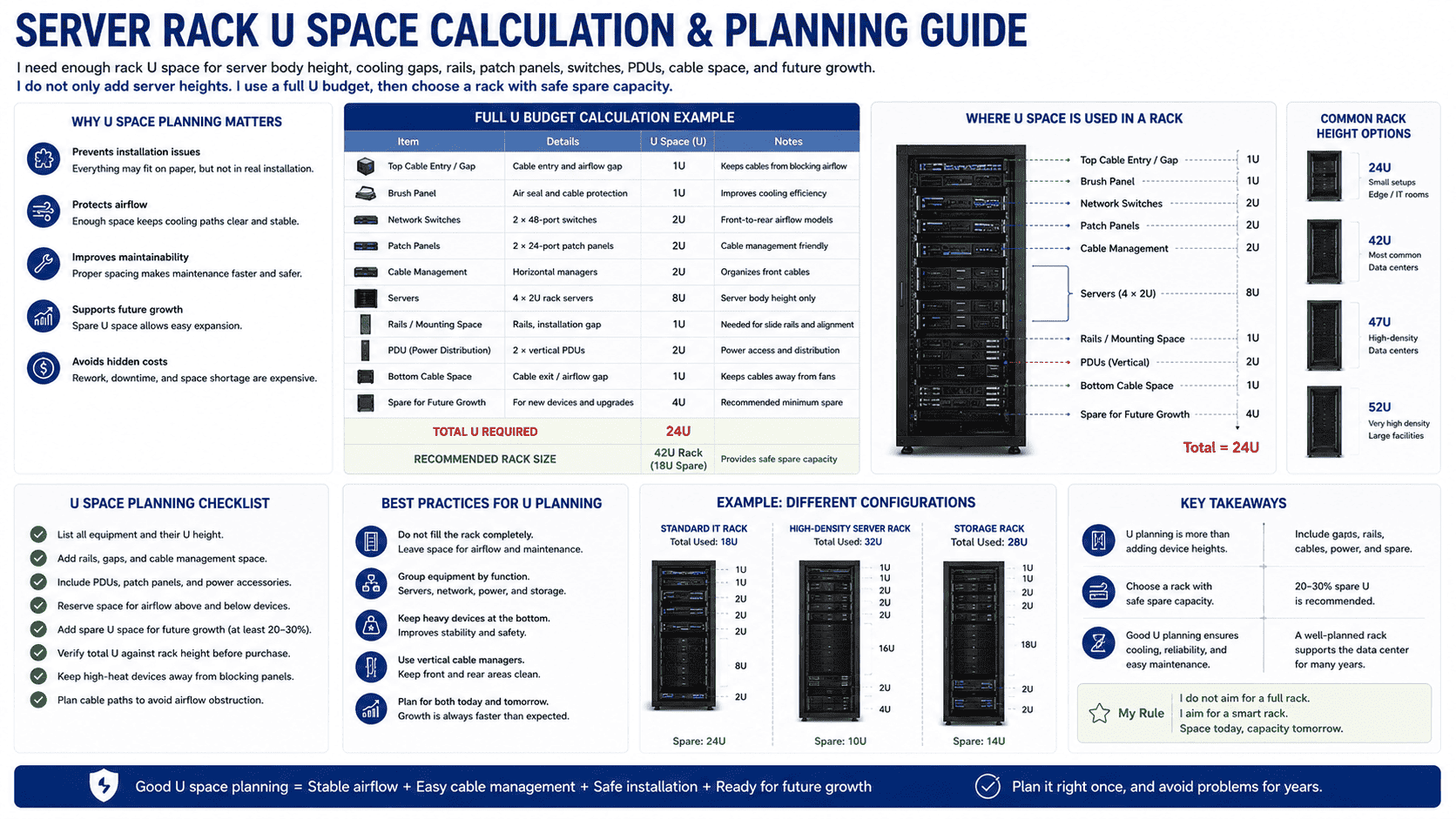

I need enough rack U space for server body height, cooling gaps, rails, patch panels, switches, PDUs, cable space, and future growth. I do not only add server heights. I use a full U budget, then choose a rack with safe spare capacity.

I treat rack U planning as one of the first steps in a data center build. I do this because a wrong U count creates many later problems. A server may fit on paper. The same server may not fit well after I add rails, airflow space, cables, power parts, and spare space. I have learned that a good rack plan is not about filling every hole. It is about keeping the room stable, easy to maintain, and ready for expansion.

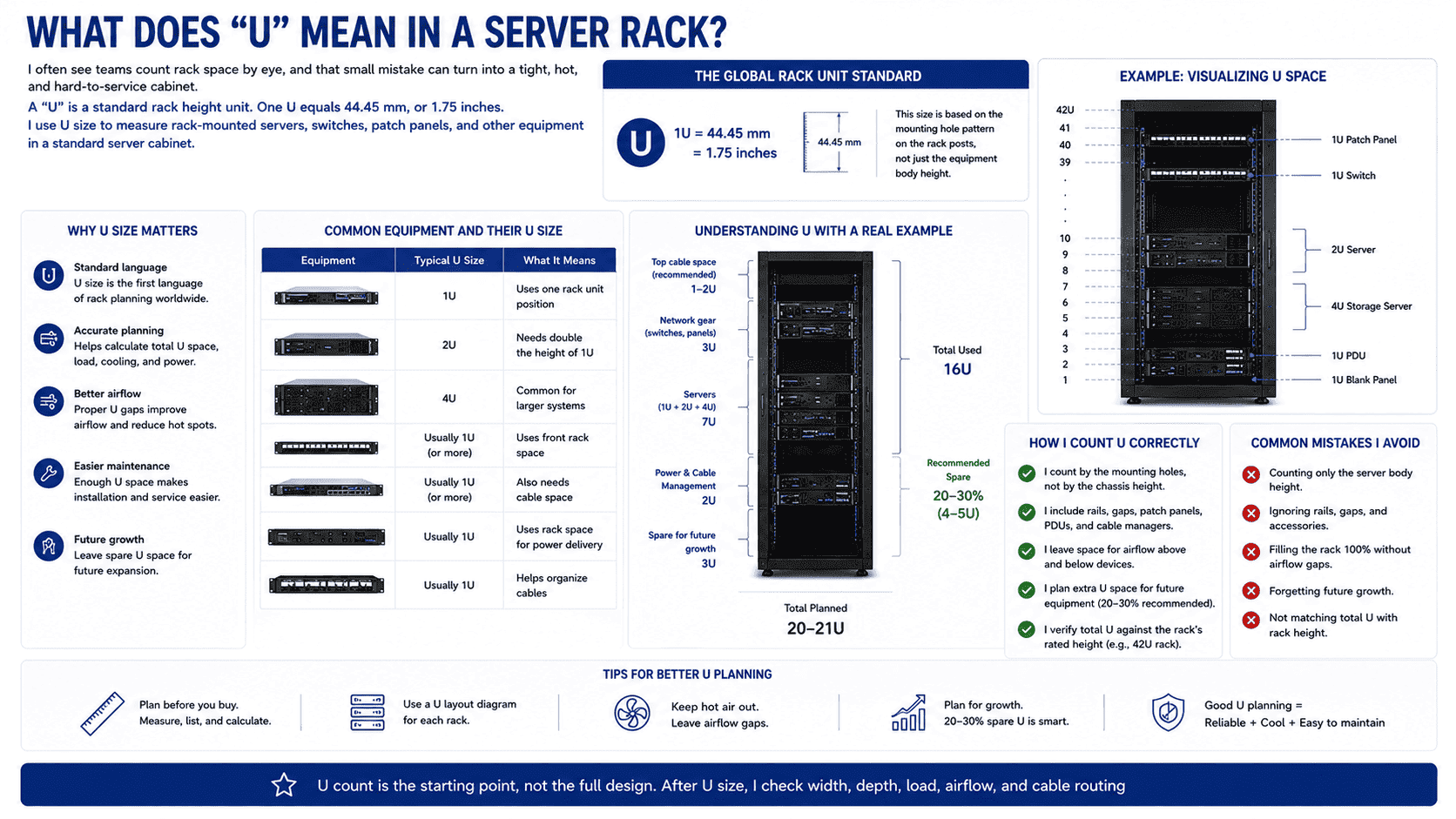

What Does “U” Mean In A Server Rack?

I often see teams count rack space by eye, and that small mistake can turn into a tight, hot, and hard-to-service cabinet.

A “U” is a standard rack height unit. One U equals 44.45 mm, or 1.75 inches.¹ I use U size to measure rack-mounted servers, switches, patch panels, and other equipment in a standard server cabinet.

I Start With The Global Rack Unit Standard

I always begin with the basic rule. A rack unit, also called RU or U, is the common height standard used in data centers around the world.² One U is 44.45 mm. It is also 1.75 inches. This size is not only the height of a metal box. It also relates to the mounting space on the rack posts.³ That point matters because a server needs a real install position, not only a physical body height.

I have seen buyers measure only the outside height of a server chassis. That can lead to a wrong plan. The cabinet is built around the mounting hole pattern. The server, rails, screws, and gaps must work with that pattern.⁴

I use U size as the first language of rack planning. I still check width, depth, load, airflow, and cable routing after that. U count is the starting point, not the full design.

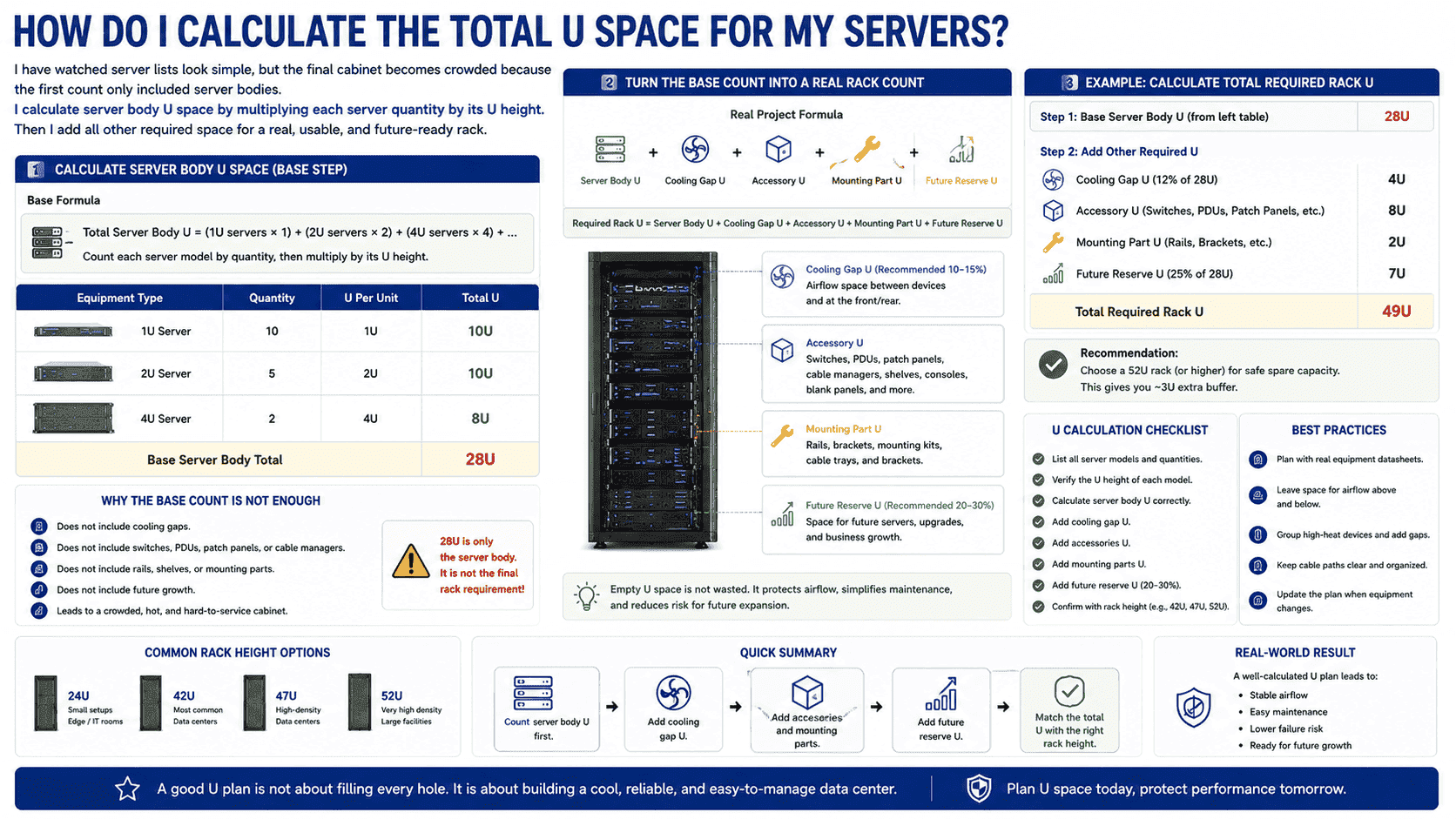

How Do I Calculate The Total U Space For My Servers?

I have watched server lists look simple, but the final cabinet becomes crowded because the first count only included server bodies.

I calculate server body U space by multiplying each server quantity by its U height. My base formula is: total server body U = 1U servers × 1 + 2U servers × 2 + 4U servers × 4, then I add other required space.

I Use A Base Formula Before I Add Extra Space

I first count the height of all rack-mounted server bodies. This gives me the base U demand. It is simple, but it must be exact. If I have ten 1U servers, I count 10U. If I have five 2U servers, I count 10U. If I have two 4U servers, I count 8U. My first number is 28U.

I do not stop there. That 28U is only the server body count. It does not include cooling gaps, switches, cable managers, patch panels, shelves, rails, or future growth. I have seen many rack plans fail at this stage because the base count was treated as the final count.

I Turn The Base Count Into A Real Rack Count

I use a more complete formula for real projects:

Required rack U = server body U + cooling gap U + accessory U + mounting part U + future reserve U.⁵

This formula helps me avoid a cabinet that looks full on day one. It also helps me explain the plan to a customer before production. I can show where each U goes. I can also show why an empty space is not wasted. In a stable data center, empty space can protect airflow and service access.⁶

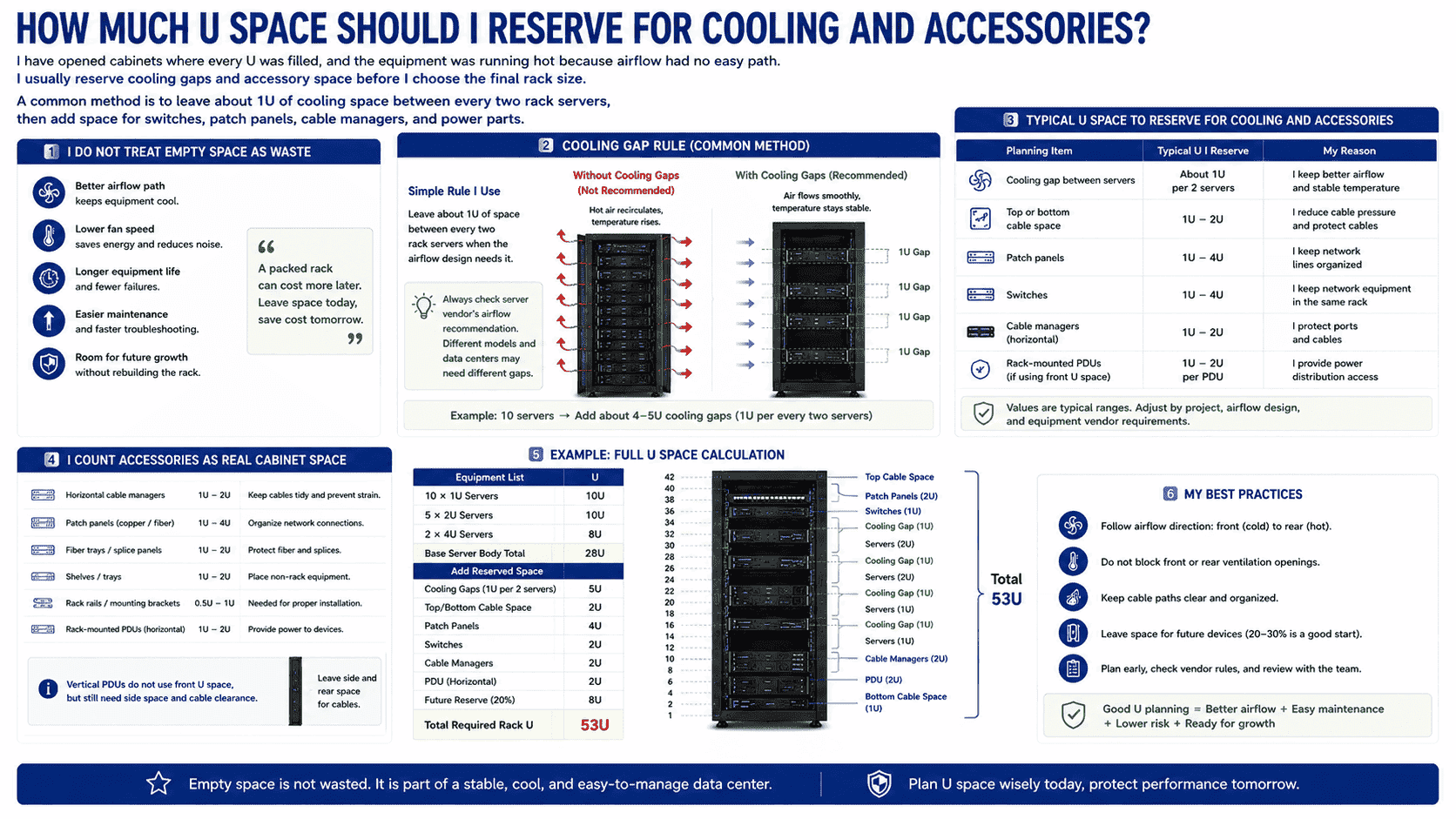

How Much U Space Should I Reserve For Cooling And Accessories?

I have opened cabinets where every U was filled, and the equipment was running hot because airflow had no easy path.

I usually reserve cooling gaps and accessory space before I choose the final rack size. A common method is to leave about 1U of cooling space between every two rack servers⁷, then add space for switches, patch panels, cable managers, and power parts.

I Do Not Treat Empty Space As Waste

I know many teams want to use every U because rack space costs money. I understand that pressure. But I also know that a packed rack can cost more later. Heat can rise. Fans can work harder. Devices can fail earlier.⁸ Service work can take longer. The rack can become hard to upgrade.

For many standard server deployments, I prefer a simple cooling rule. I leave about 1U of space between every two rack servers when the airflow design needs it. I still check the server vendor’s rule. Some high-density systems need a different plan. Some hot aisle and cold aisle rooms can handle tighter layouts.⁹ But I never ignore cooling space.

I Count Accessories As Real Cabinet Space

I also count parts that people forget. I count horizontal cable managers. I count patch panels. I count fiber trays. I count shelves if non-rack equipment is used. I count rack-mounted PDUs when they take U space. Some PDUs are vertical and do not use front U space, but they still need side space and cable clearance. I also think about rails and mounting brackets. These parts may not always take a full U, but they affect installation.

I plan accessories early because they support stable operation. A clean rack is easier to inspect. A clean rack is easier to repair. A clean rack also looks professional when a customer audits the data center.

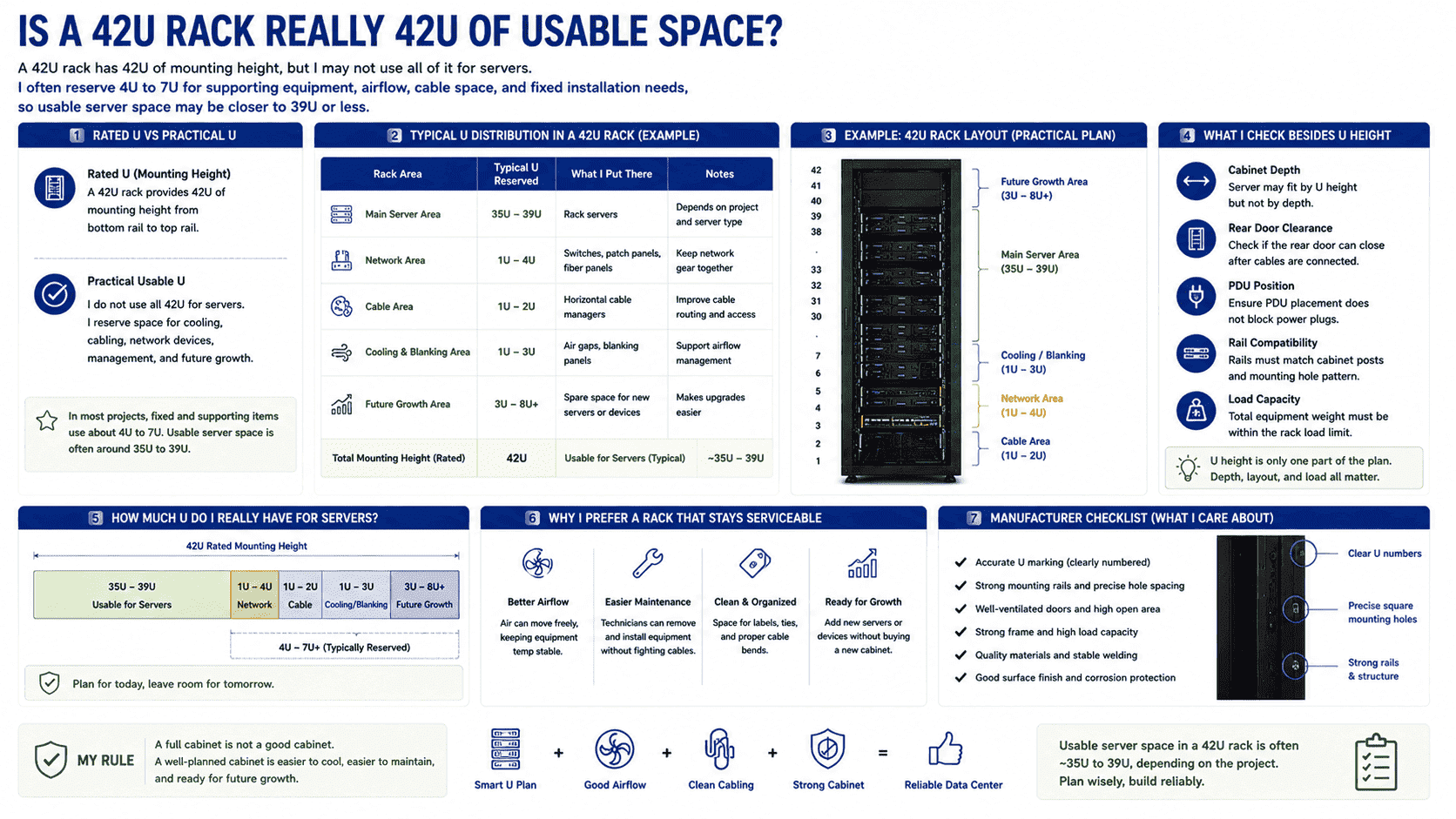

Is A 42U Rack Really 42U Of Usable Space?

I have seen people buy a 42U cabinet and expect all 42U to be available for servers, but that is rarely my real plan.

A 42U rack has 42U of mounting height, but I may not use all of it for servers.¹⁰ I often reserve 4U to 7U for supporting equipment, airflow, cable space, and fixed installation needs, so usable server space may be closer to 39U or less.

I Separate Rated U From Practical U

A 42U rack gives me 42 rack units by height. That is the rated space. Practical usable space is different. I still need space for airflow, cable routing, switches, patch panels, blanking panels, management parts, and future service. In many common projects, fixed and supporting items may use about 4U to 7U¹¹. That means the space left for servers may be around 35U to 39U, based on the build plan.

I also check the cabinet depth. A server may fit by U height but fail by depth. I check whether the rear door can close after cables are plugged in. I check whether the PDU position blocks power plugs. I check whether the rails match the cabinet posts.

I Prefer A Rack That Stays Serviceable

I would rather deliver a rack with a clear plan than a rack that is full from the first day. A serviceable rack lets a technician remove a server without fighting cables. It lets the airflow stay stable. It gives space for labels, ties, and clean cable bends. It also gives the customer room for a small upgrade without ordering a new cabinet.

As a cabinet manufacturer, I pay attention to the U marking, rail strength, hole accuracy, door ventilation, and frame load. The U plan and the cabinet structure must match. A strong cabinet still needs a smart layout. A smart layout still needs a precise cabinet.

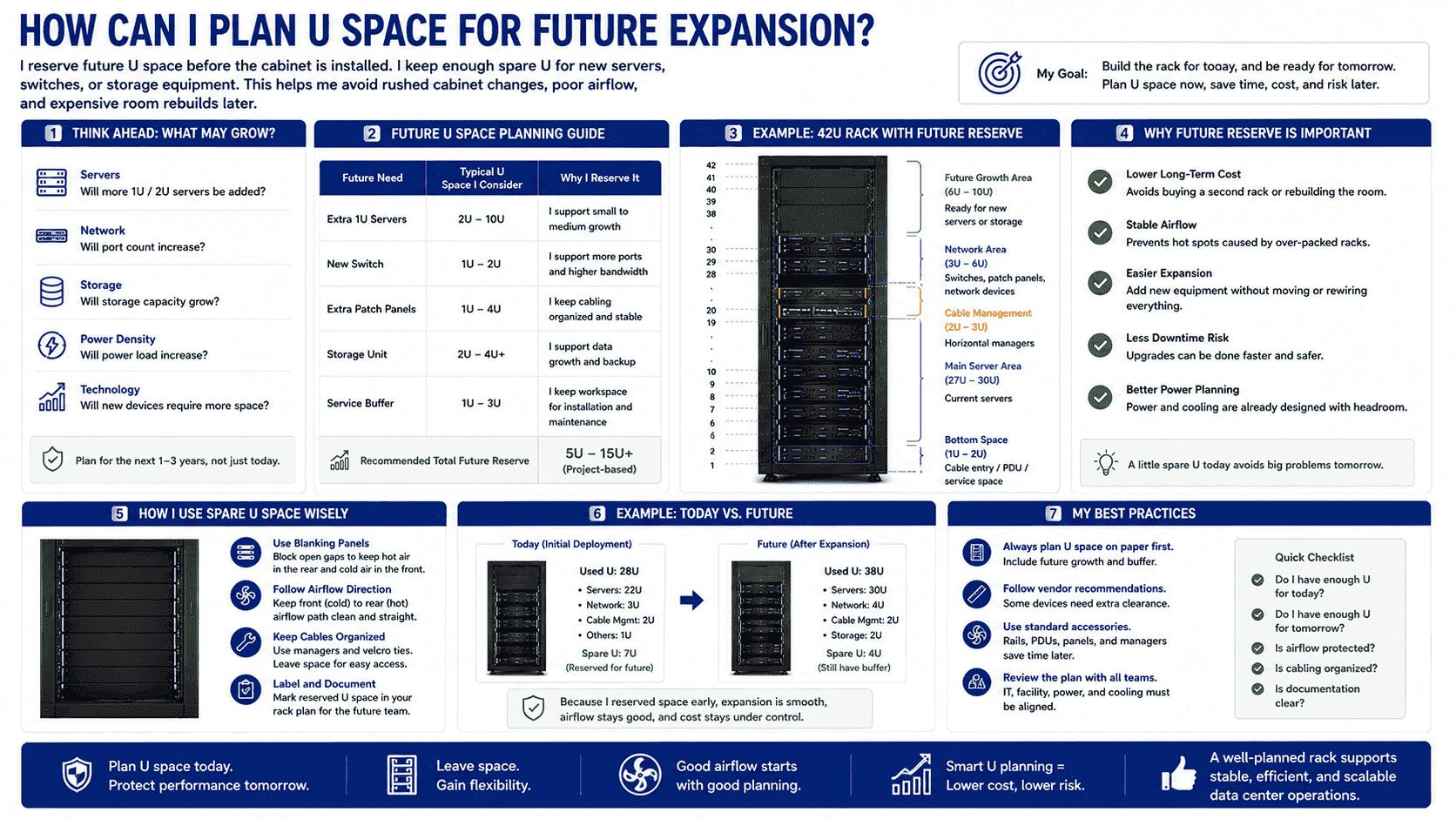

How Can I Plan U Space For Future Expansion?

I have worked with projects where the first deployment was successful, but the next expansion failed because no space was reserved.

I reserve future U space before the cabinet is installed. I usually keep enough spare U for new servers, switches, or storage equipment. This helps me avoid rushed cabinet changes, poor airflow, and expensive room rebuilds later.

I Build The Rack For The Next Stage

I do not plan a rack only for the equipment list in front of me. I ask what may happen in the next one to three years. I ask whether the customer may add more servers. I ask whether storage will grow. I ask whether network ports will increase. I ask whether power density may rise.

Future space is not a luxury in a data center. It is a risk control tool. If I leave no spare U, the next upgrade may force a second cabinet, new power planning, new cable paths, and new cooling checks. That can cost more than reserving space at the beginning.

I Use Spare Space To Lower Long-Term Cost

I see future reserve as part of cost control. A rack with some spare space can reduce later labor. It can reduce downtime risk. It can reduce heat stress.¹² It can also reduce the need to move equipment. In many projects, the cheapest rack is not the rack with the highest fill rate. The better choice is the rack that stays stable for years.

I also use blanking panels when I leave open U spaces. Open gaps can let hot air return to the front of the rack. Blanking panels help guide airflow in a cleaner way. So I can reserve space and still protect cooling performance. This is a small detail, but it can make a real difference in a working data center.

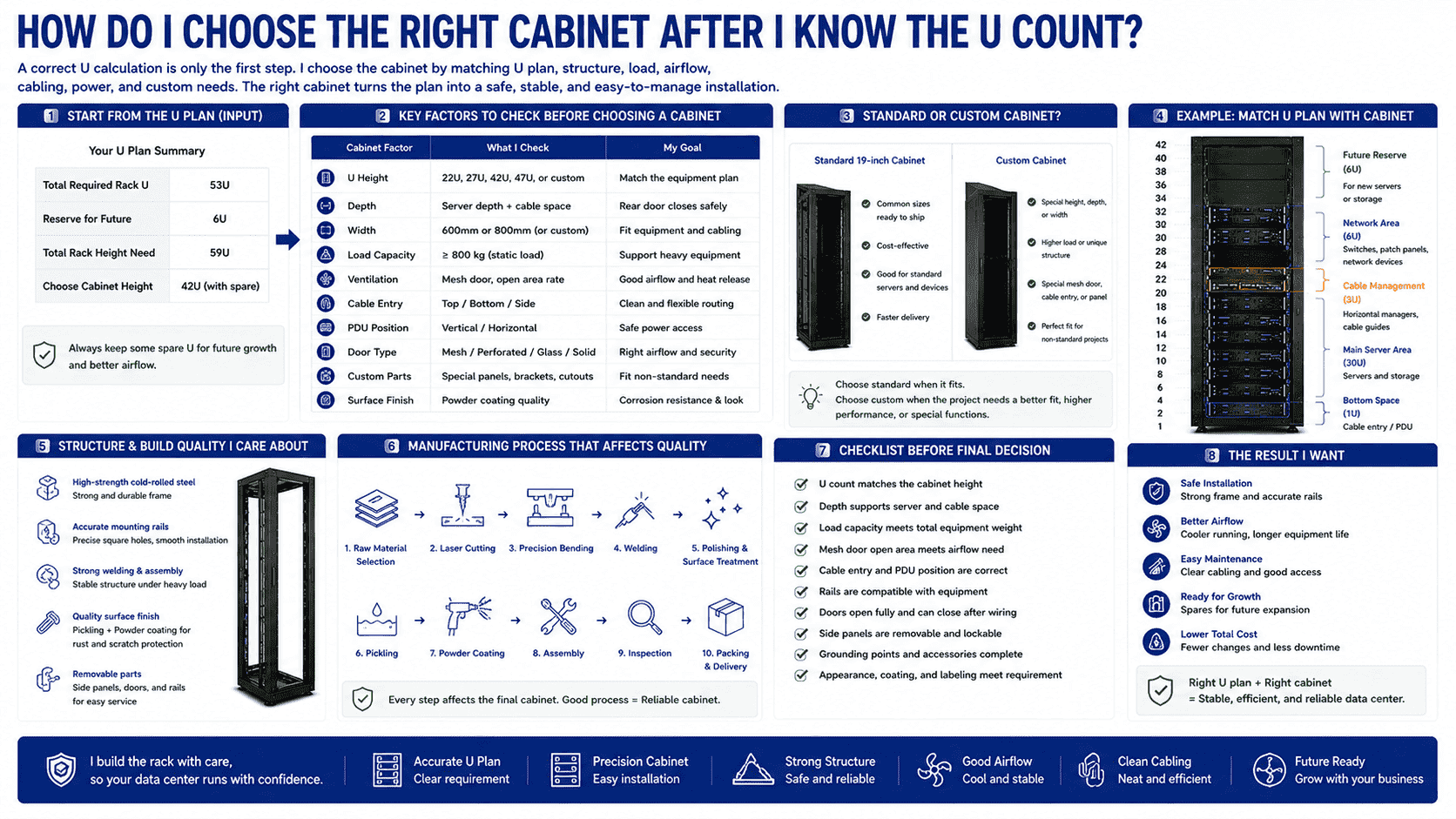

How Do I Choose The Right Cabinet After I Know The U Count?

I have seen correct U calculations fail because the cabinet itself did not match load, depth, airflow, or custom installation needs.

I choose the cabinet after I confirm U height, depth, load capacity, ventilation, cable entry, PDU position, door type, and custom parts. The right U count needs the right rack structure to become a safe installation.

I Match The U Plan With The Physical Cabinet

After I finish the U calculation, I check the cabinet design. A standard 19-inch rack may work for common servers. A custom cabinet may be needed for special equipment, unusual depth, heavier load, or a special mesh door. I do not treat the rack as a simple metal box. I treat it as the base frame for data center operation.

I check the frame load first. Heavy servers, UPS units, and storage systems need a strong structure. I check the mounting rails. The rail holes must be accurate. I check the door opening. The front and rear doors must support airflow and service access. I check the surface finish because a stable powder coating protects the cabinet in long-term use.

I Use Manufacturing Experience To Avoid Hidden Problems

In my work, I think about the rack from raw material to final assembly. I care about sheet metal selection, laser cutting, bending, welding, polishing, pickling, powder coating, and assembly. Each step affects the final cabinet. If the rack posts are not accurate, the U plan becomes hard to install. If the mesh door is weak, airflow may be good but durability may be poor. If the frame is not strong enough, the cabinet may deform under load.

This is why I prefer to confirm the U plan with the real equipment list. I also confirm drawings for custom cabinets. A clear U count helps production. A precise cabinet helps installation. Together, they help the data center run with fewer problems.

Conclusion

I get the right rack U count when I count equipment, cooling, accessories, mounting space, and future growth before I order the cabinet.
