Custom Network Cabinet Mesh Door | Solve Protrusion Door Closing Problem
Equipment protruding out of the cabinet and causing the door unable to close? We have mesh doors with protruding depths of 5cm, 8cm, 10cm, 15cm and 20cm for your selection. Simply provide your dimensions or photos, and we will design a perfect solution for you.
Mesh
Convex Perforated Mesh Door
Convex Perforated Mesh Door, High Airflow
Mesh
Flat Single-Swing Mesh Door
Flat Single-Swing Mesh Door, High Airflow
Mesh

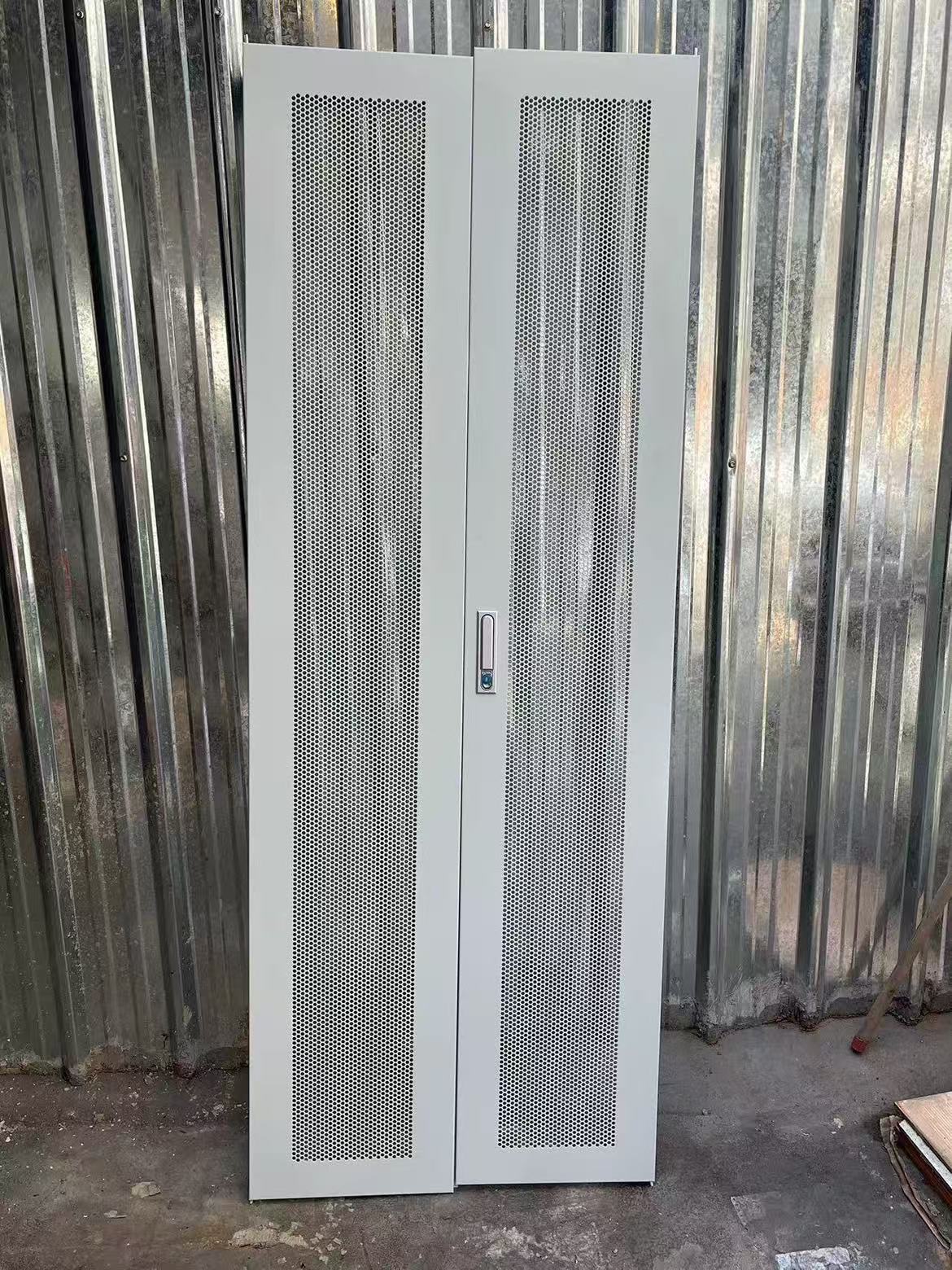

Flat Double-Swing Mesh Door
Flat Double-Swing Mesh Door, High Airflow
Glass
Single-Swing Tempered Glass Door
Single-Swing Tempered Glass Door, Clear View
Acrylic
Single-Swing Acrylic Panel Door
Single-Swing Acrylic Door, Lightweight & Clear
Mesh

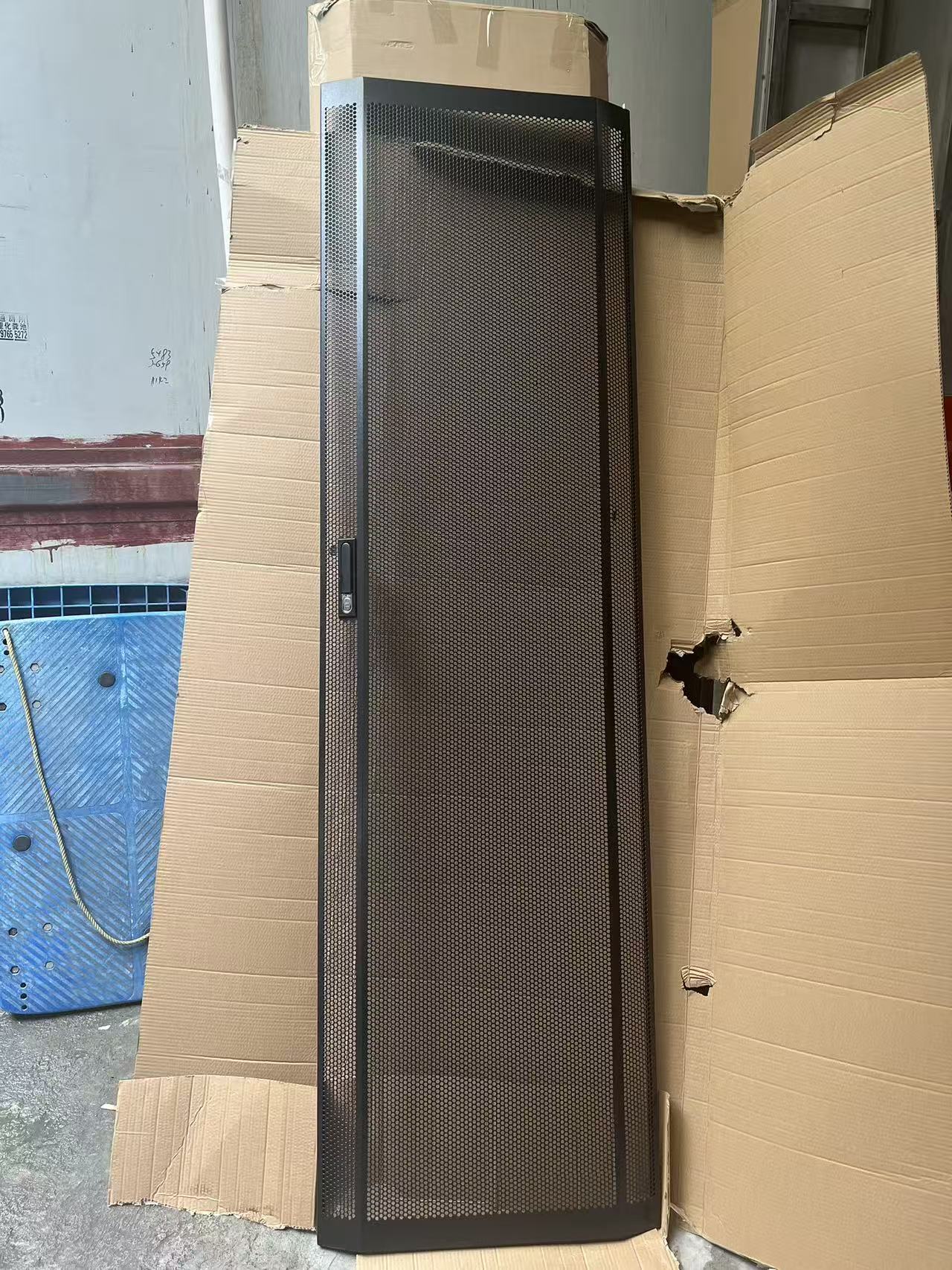

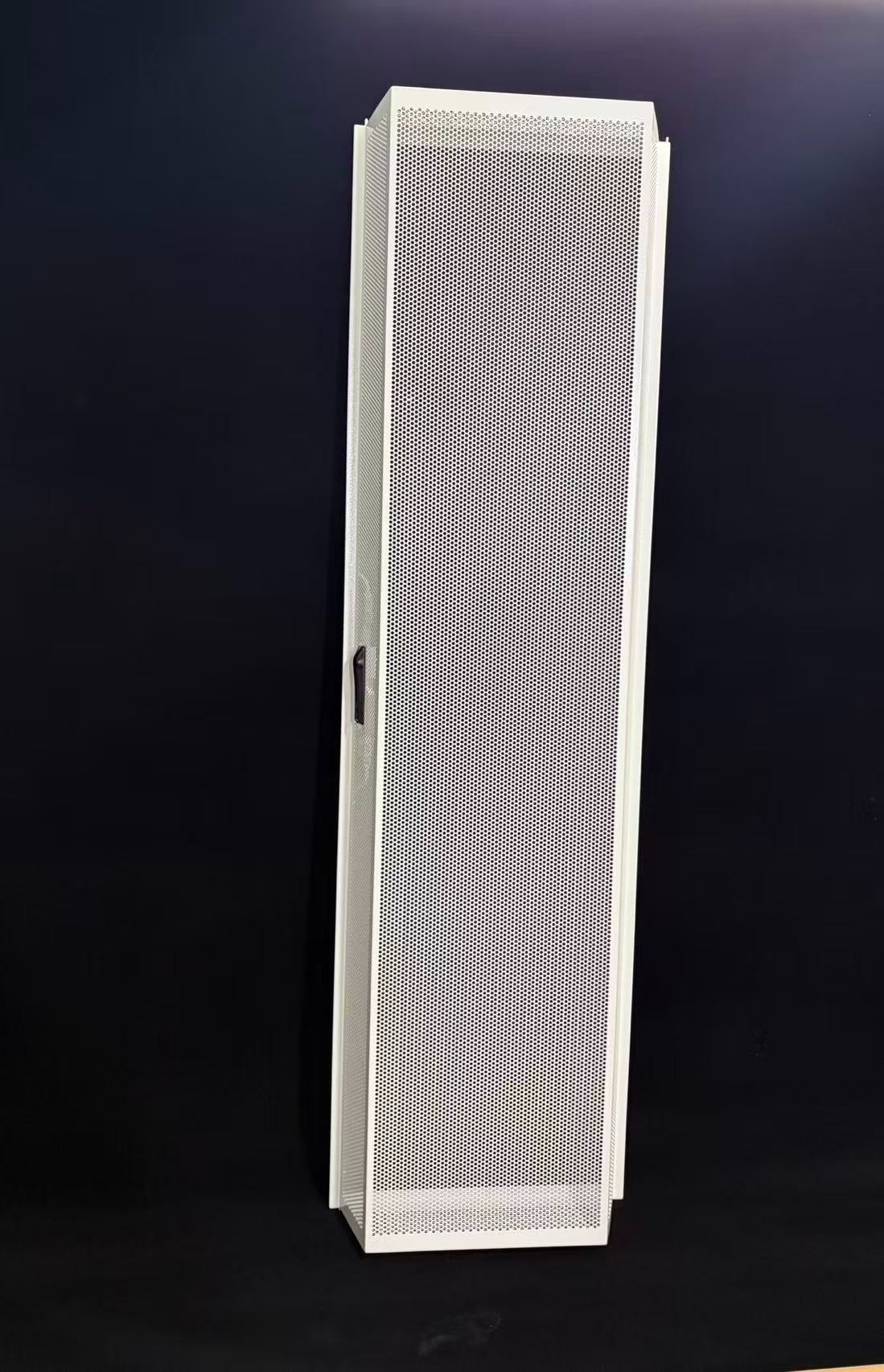

Single Protruding Mesh Door for Network Cabinet
Protruding Single Mesh Door for Network Cabinet
Mesh

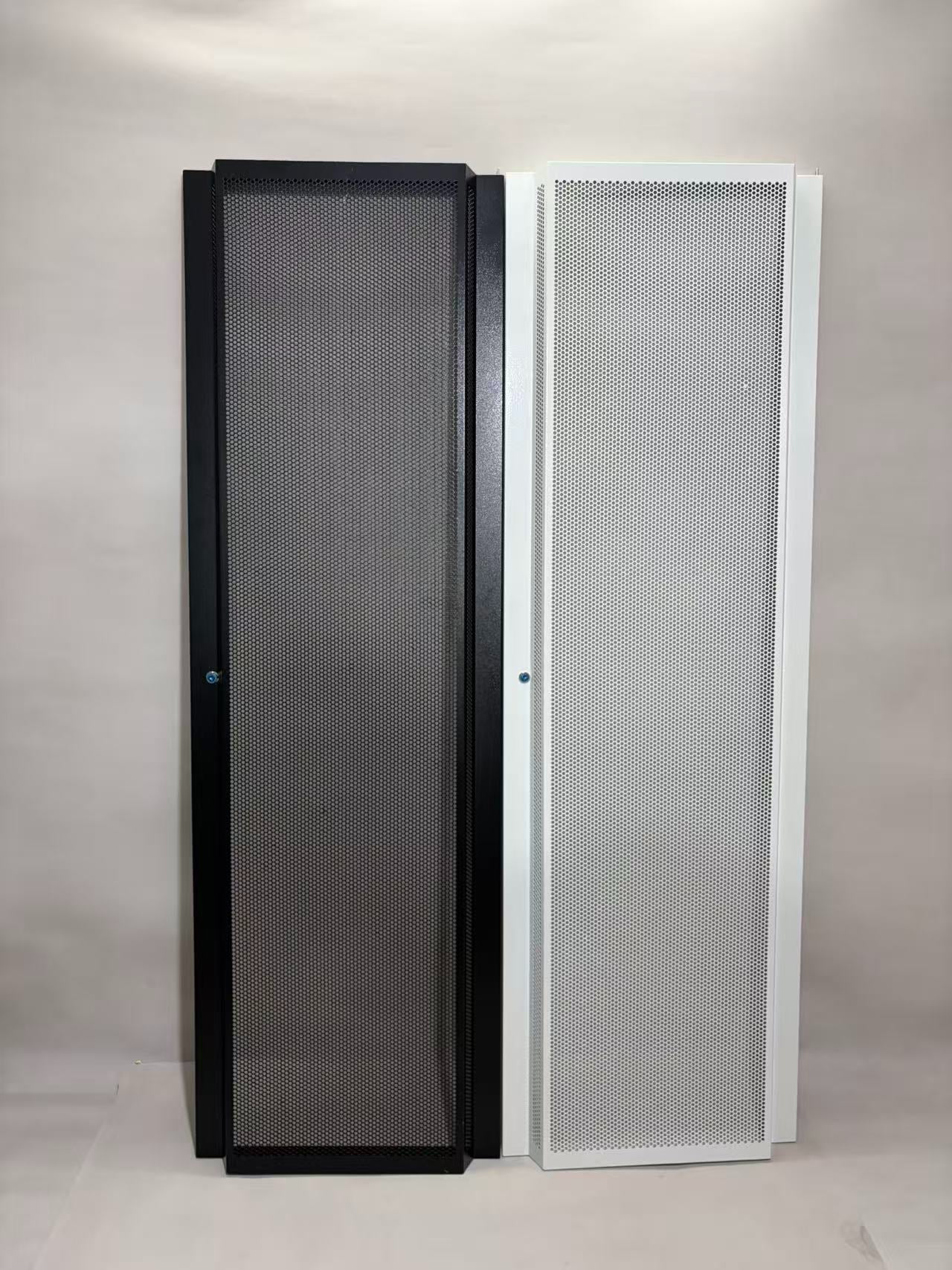

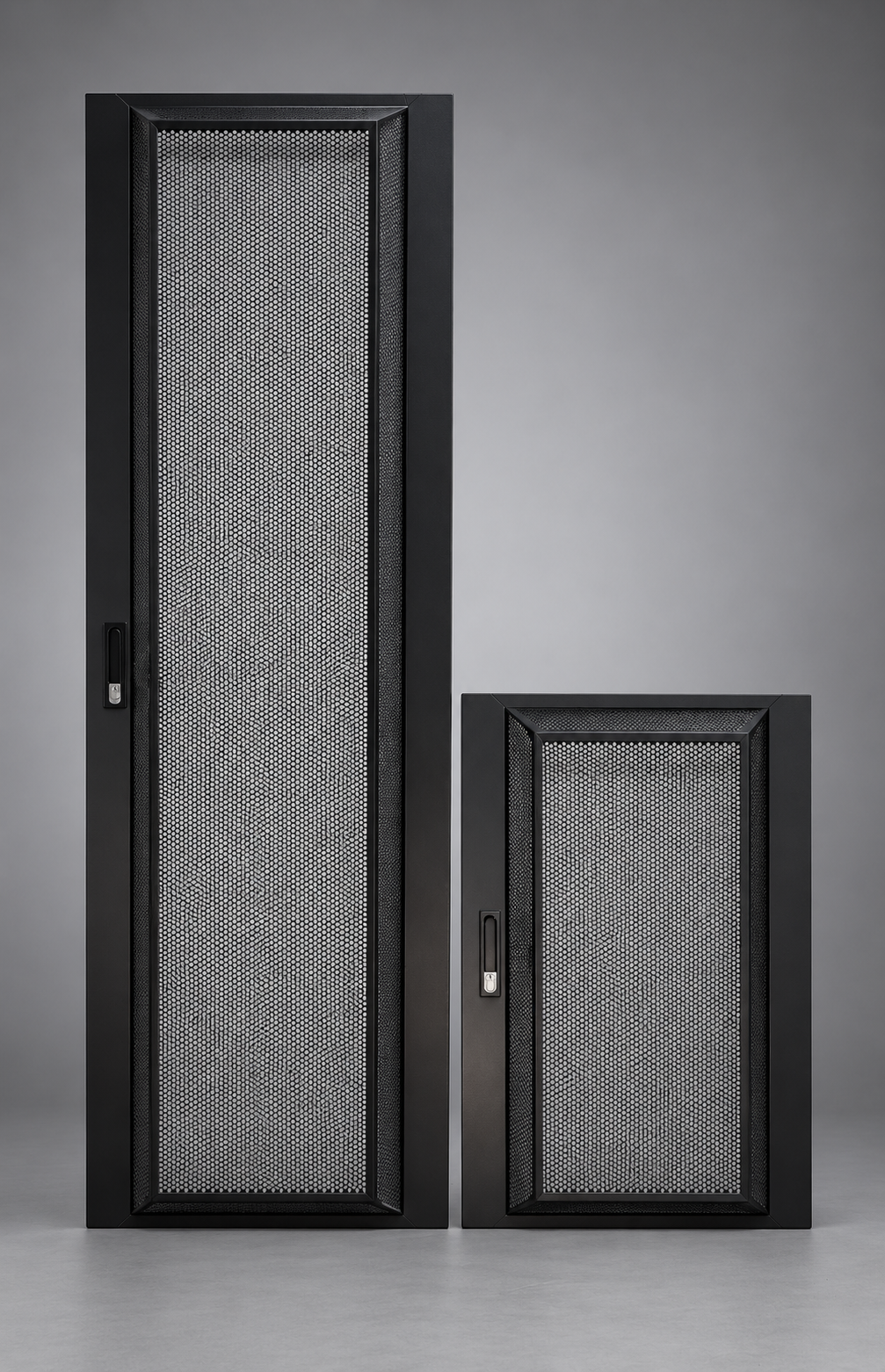

Single Protruding Mesh Door for Cabinet
Protruding Single Mesh Door for Server Cabinet
Mesh

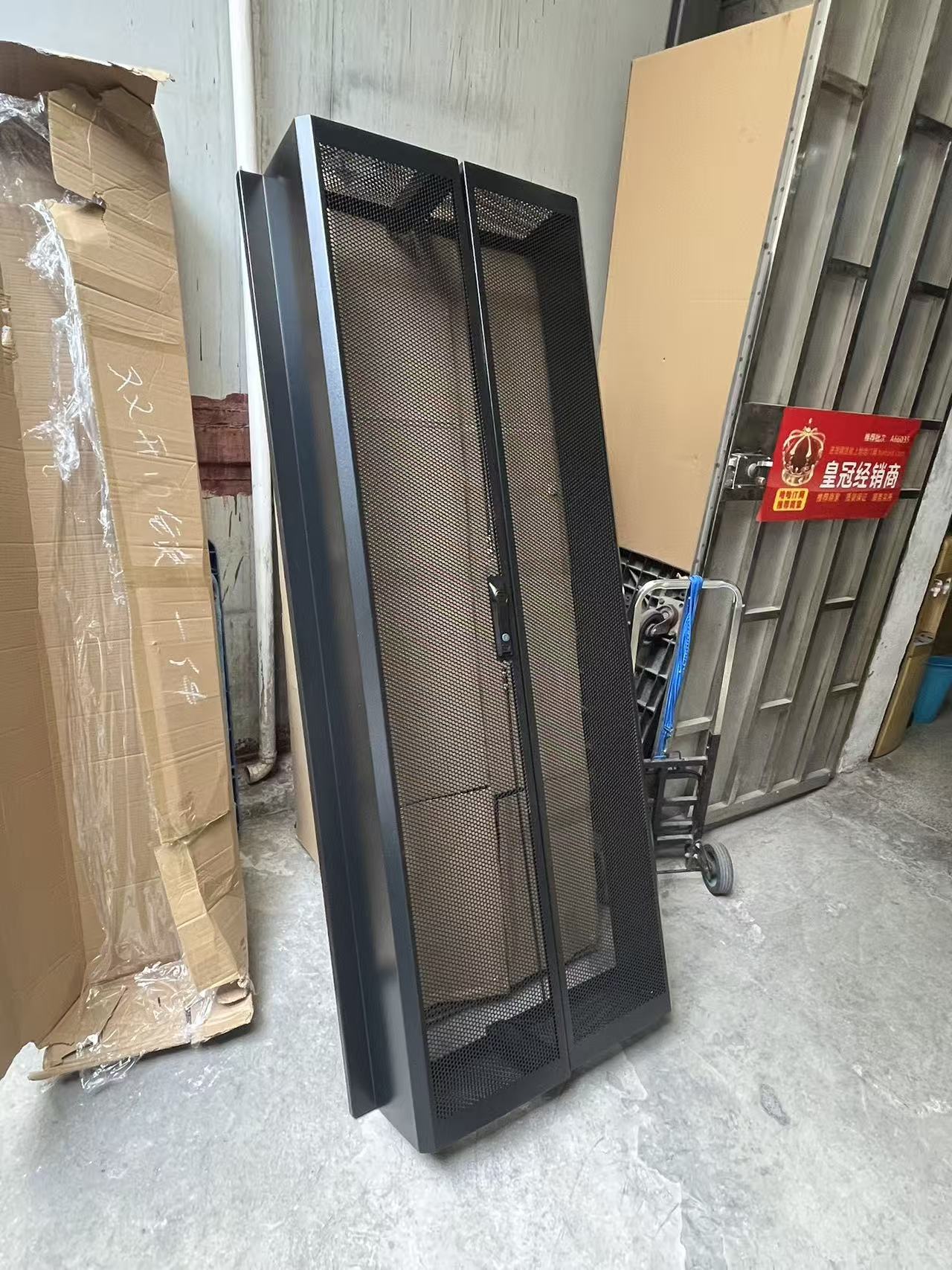

Convex Mesh Door for Server Cabinet
Double Open Convex Mesh Door for Server Cabinet, High Ventilation

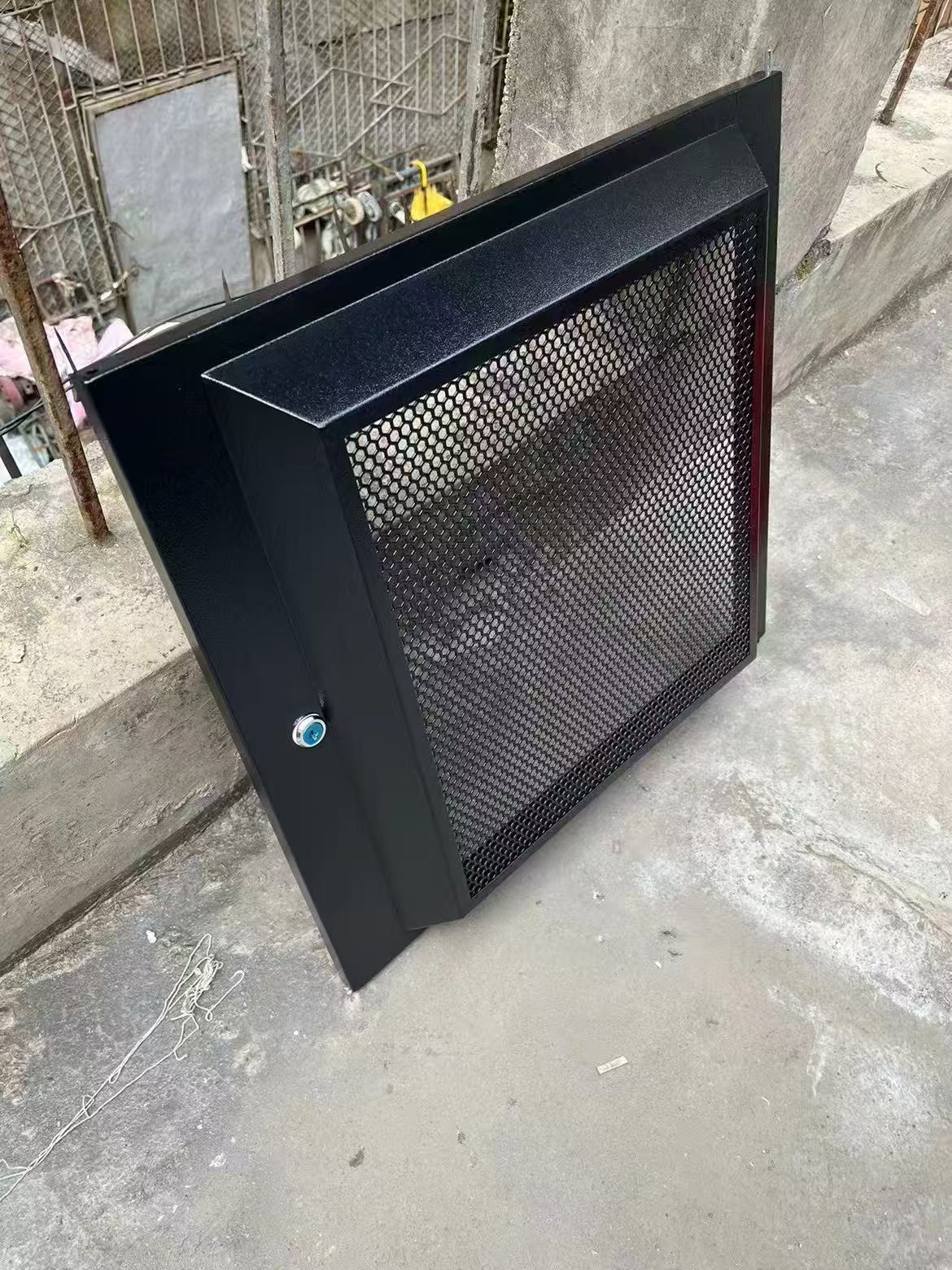

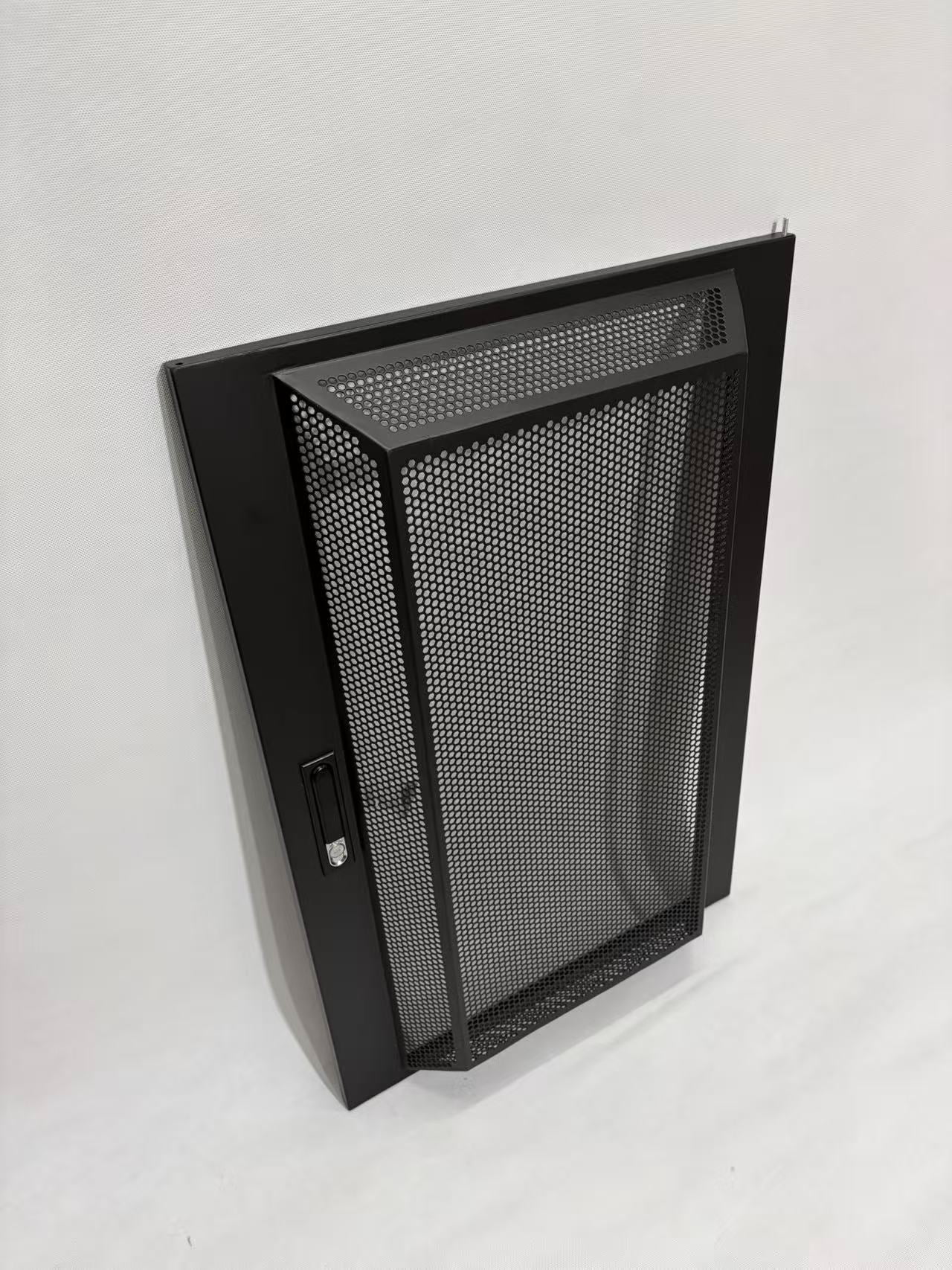

Convex Perforated Mesh Doors
The raised convex mesh design provides superior ventilation performance while adding structural depth to the door panel. Ideal for high-density rack environments requiring maximum airflow.
Convex Mesh Door
Raised panel series
- Enhanced airflow with raised geometry
- High-strength cold-rolled steel construction
- Powder-coated finish, custom colors available

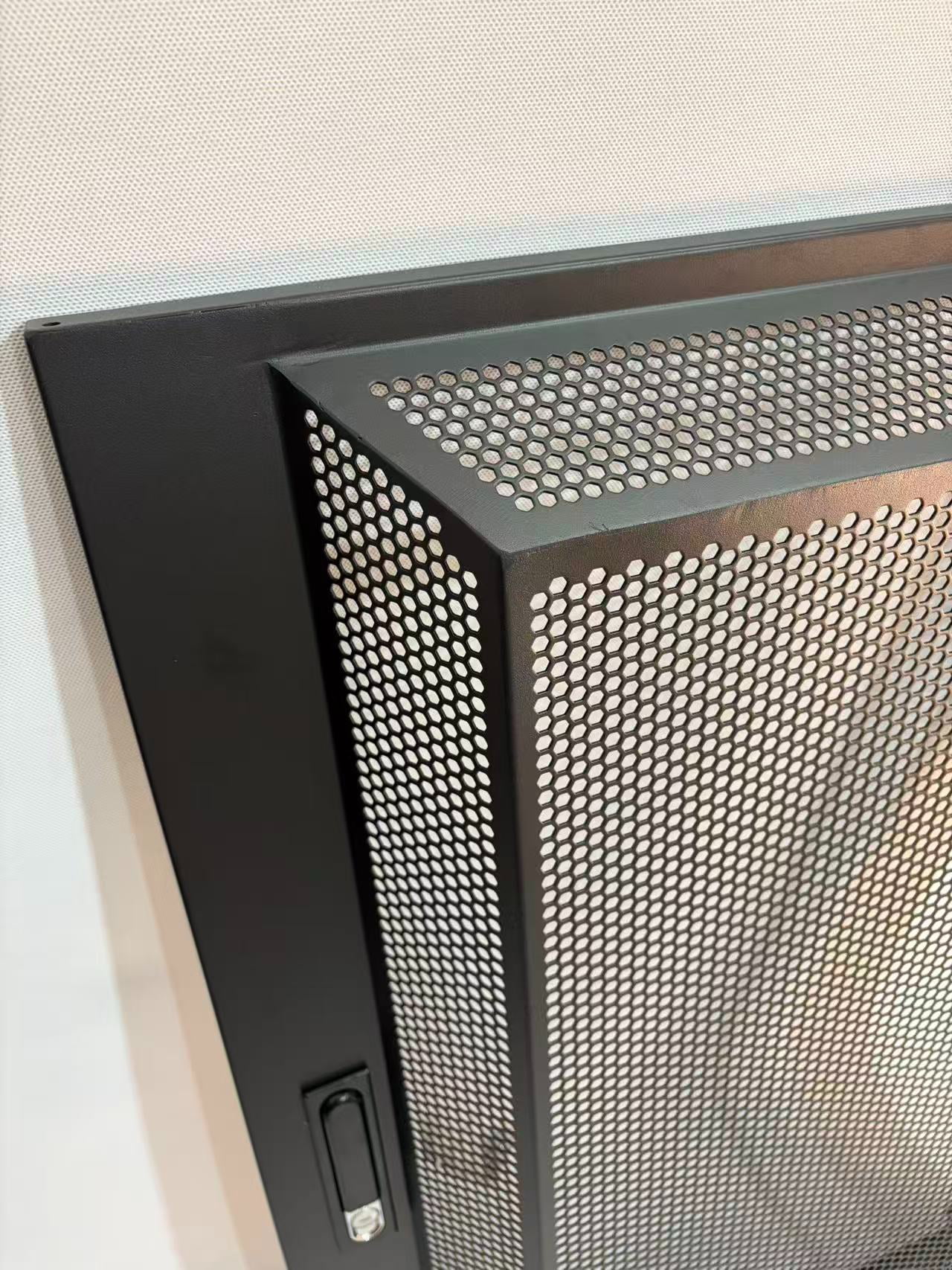

Convex Double-Swing Mesh
Dual-door convex mesh configuration
- Split dual-panel for wide cabinet widths
- Independent locking on each panel
- Convex mesh for improved rigidity

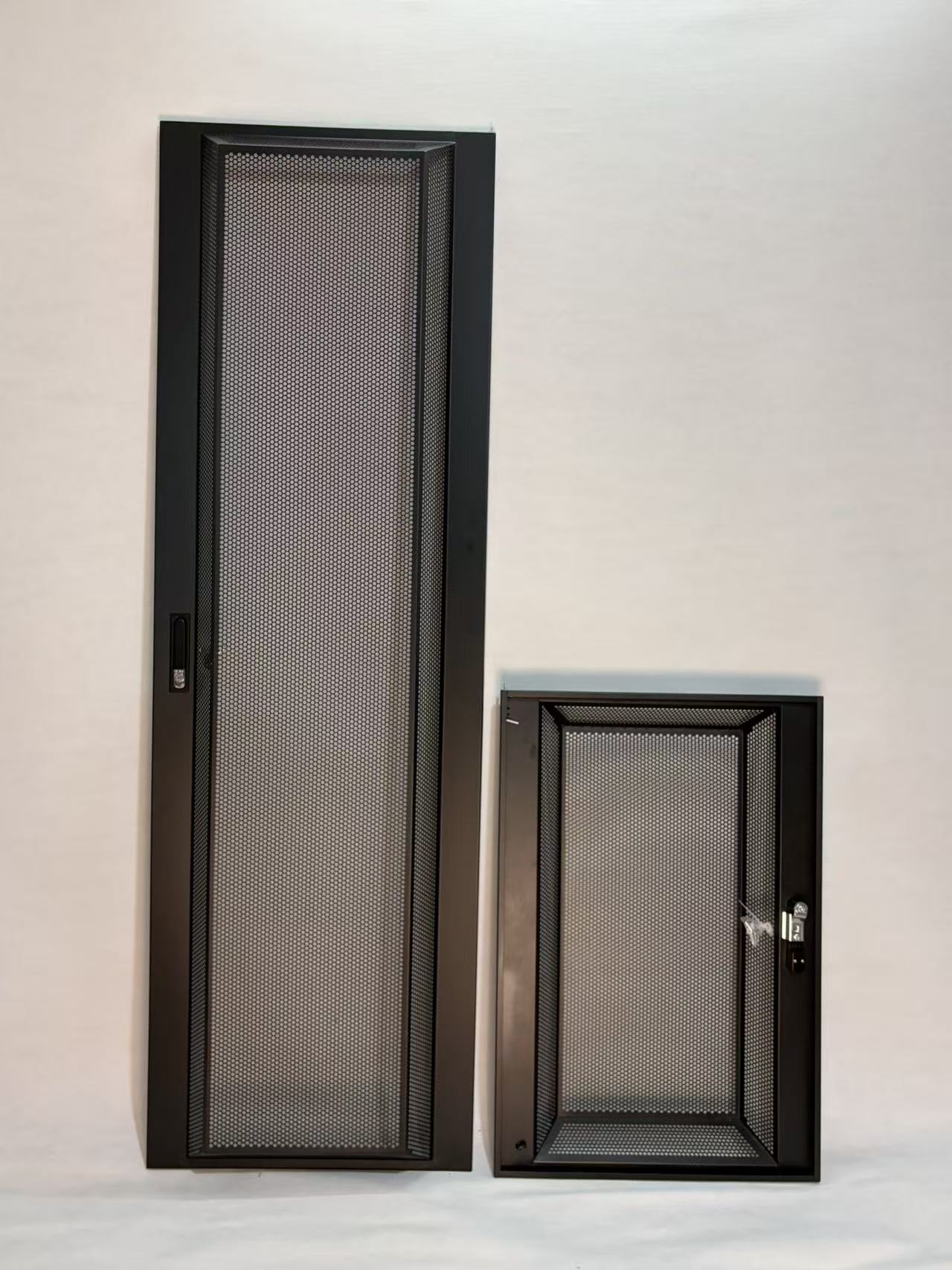

Single-door convex mesh configuration
- Full-width single panel for standard cabinets
- 3-point locking bar standard
- Left or right hinge customizable
≥60%
Ventilation Open Rate
1.2-2.0mm
Steel Sheet Thickness
RAL
Custom Color Coding
MOQ 1
No Minimum Order Qty
Flat Perforated Mesh Doors
The flat perforated mesh door offers a clean, modern profile with excellent ventilation. Available in single-swing and double-swing configurations to accommodate a wide range of cabinet widths and installation environments.

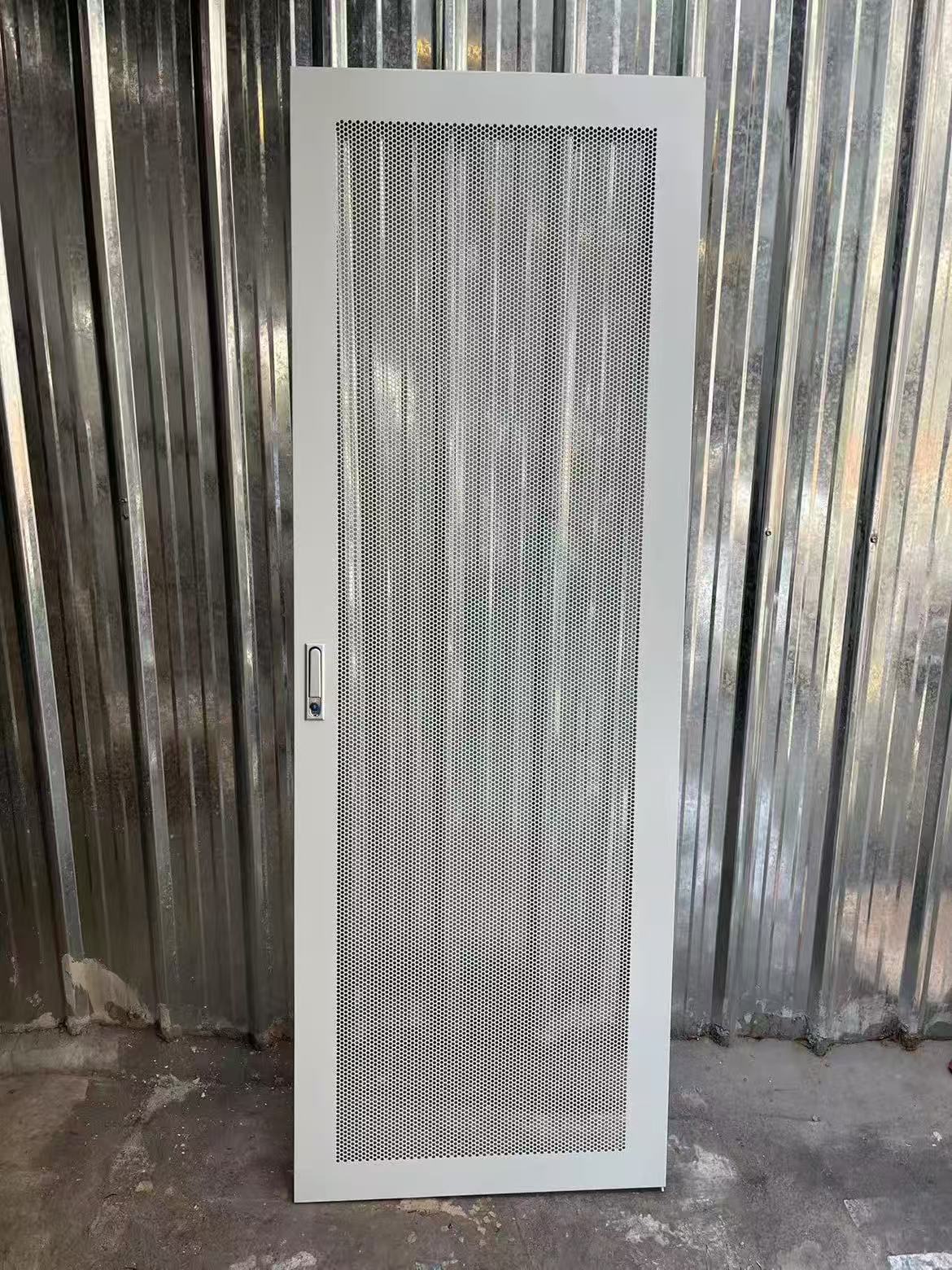

Single-Swing
Flat Mesh Door
Double Double-Swing
Flat Mesh Door
Tempered Glass Doors
High-transparency tempered glass doors allow full visual monitoring of rack equipment without opening the cabinet. Available in single-swing configuration with optional tinted or clear glass.

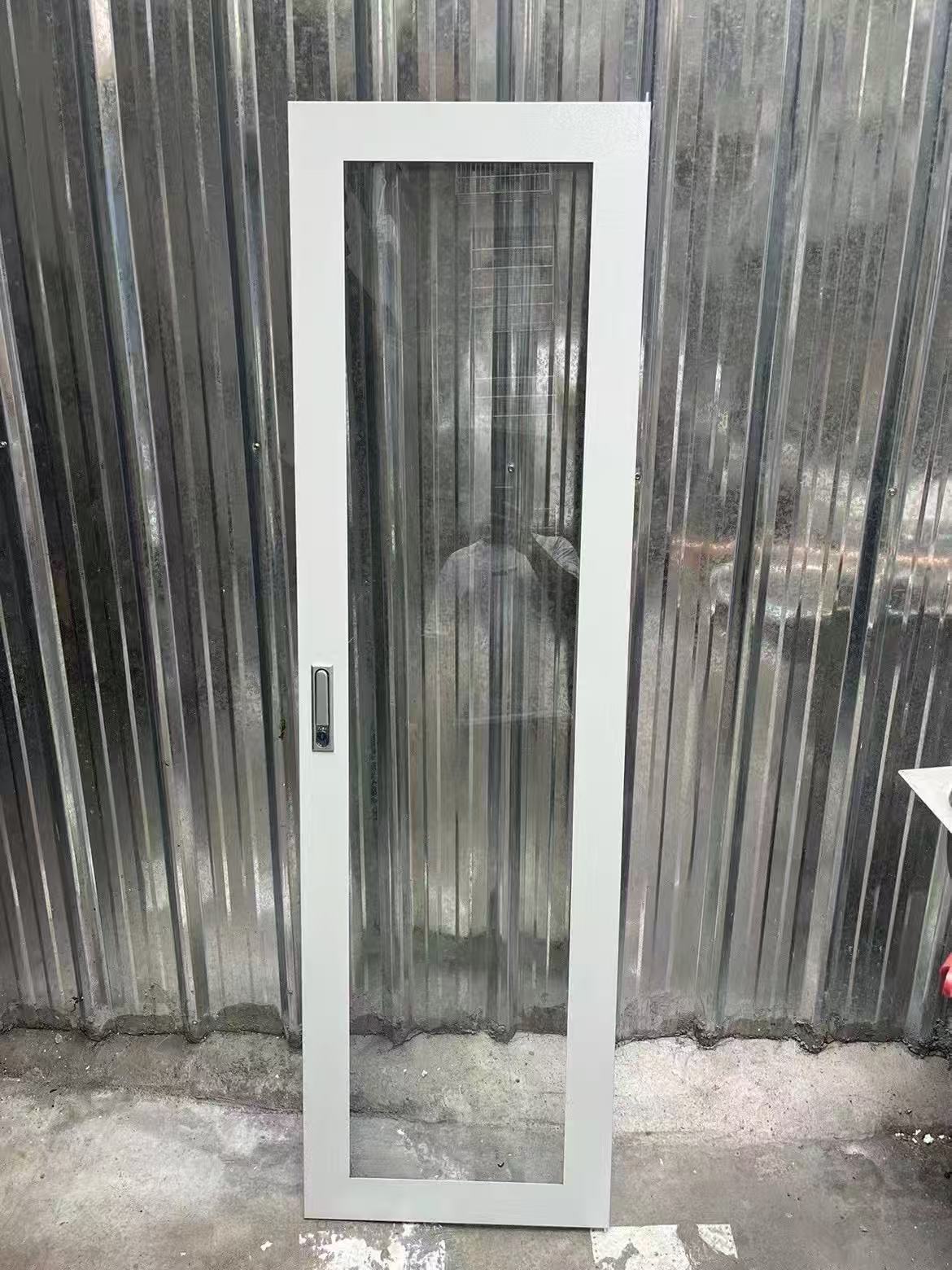

Single-Swing Tempered Glass Door
Full-height tempered glass panel with steel frame
Glass Thickness
5-8mm
Safety-certified tempered glass
Transparency
≥90%
Clear or tinted options
Frame Material
Cold-rolled steel with powder coating
Lock Type
Key lock / coded lock / handle lock
Single-Swing Acrylic Panel Door
The acrylic panel door combines the visual transparency of glass with the lightweight durability of polymer materials. Perfect for environments where weight reduction and equipment visibility are both priorities.
Panel Weight
~50%
Lighter than glass
Thickness
3-6mm
Custom available
Transparency
≥92%
Optical clarity
Colors
Custom
Tinted or clear
sizes="(max-width: 1024px) 100vw, 50vw"
>
Sealed Steel Single-Swing Door
The sealed steel door provides maximum security, dust protection, and EMI shielding. Engineered for outdoor enclosures, industrial environments, and high-security installations.

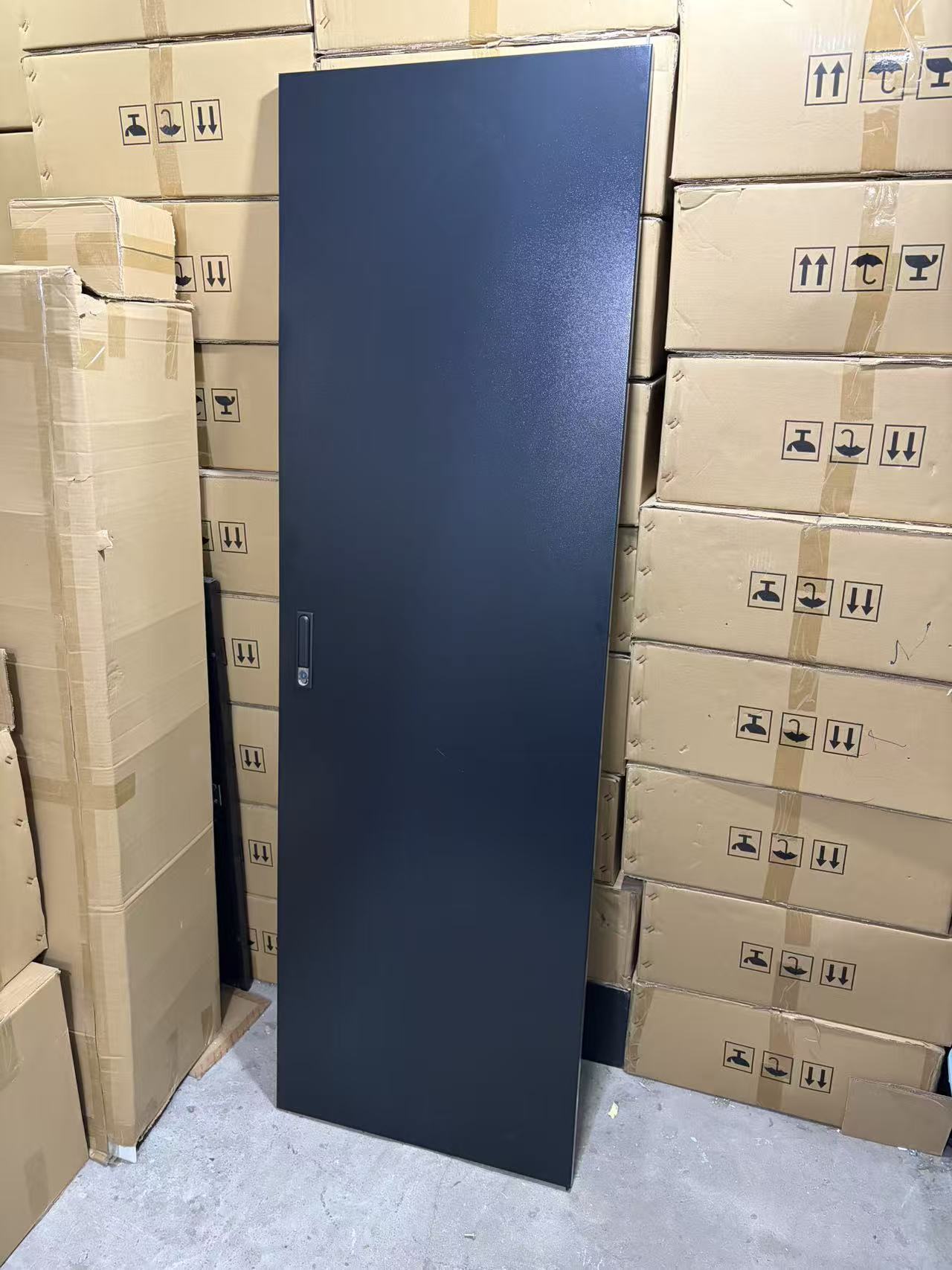

Single-Swing Steel Door
Solid panel with full perimeter gasket seal
Double-Swing Steel Door
Reinforced dual-panel with compression seal
EMI Shielding
Optional conductive gaskets for EMI protection
High-Security Locking
Multi-point locking, padlock or electronic lock
Applications
Mesh Door Installation Process
Watch our complete mesh door installation walkthrough -- from panel fitting to final lock alignment -- as demonstrated on a real engineering project.
Engineering Case Studies
Our custom cabinet doors are deployed across diverse industries worldwide -- from enterprise data centers to industrial automation lines and outdoor telecom installations.

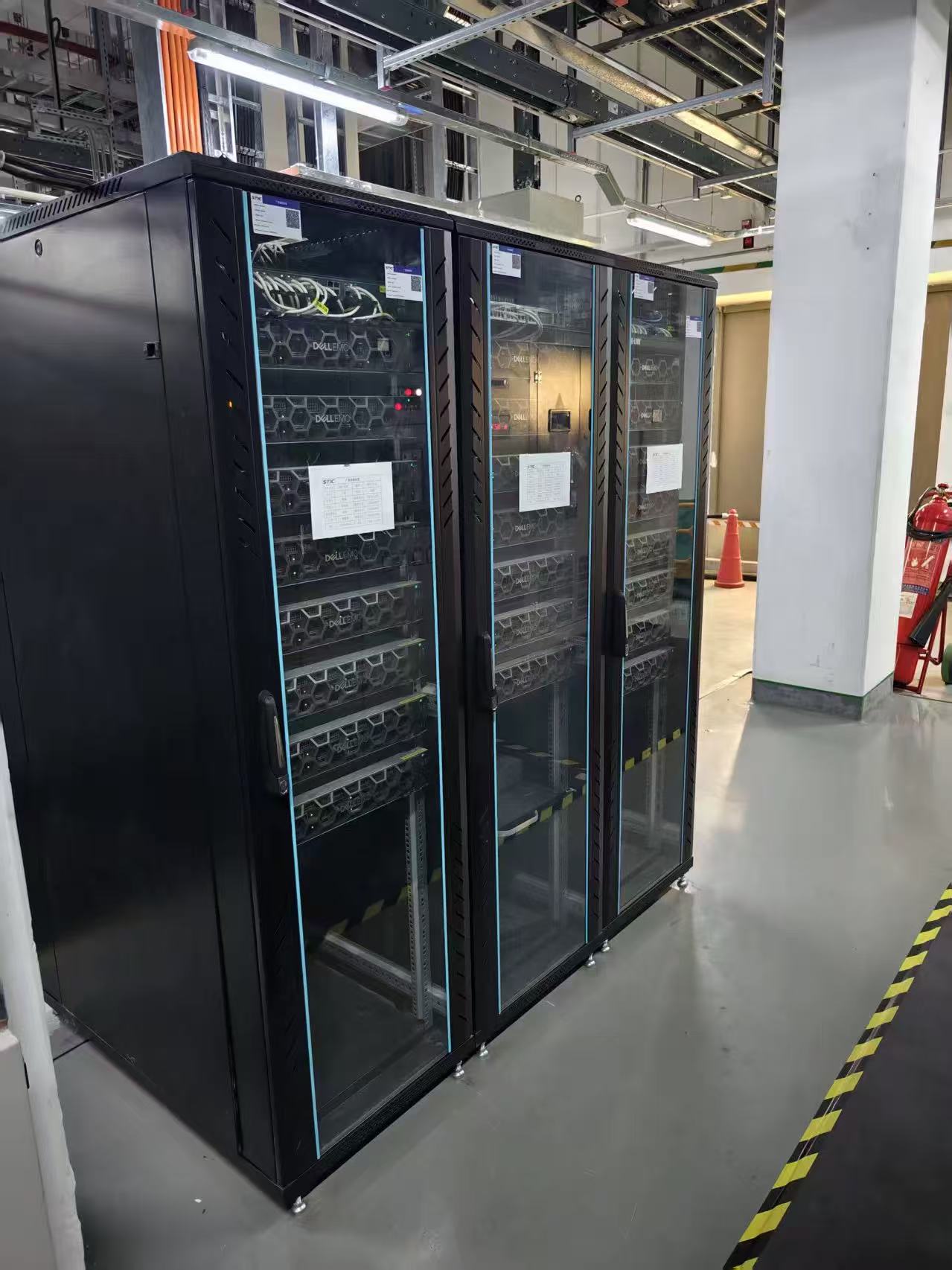

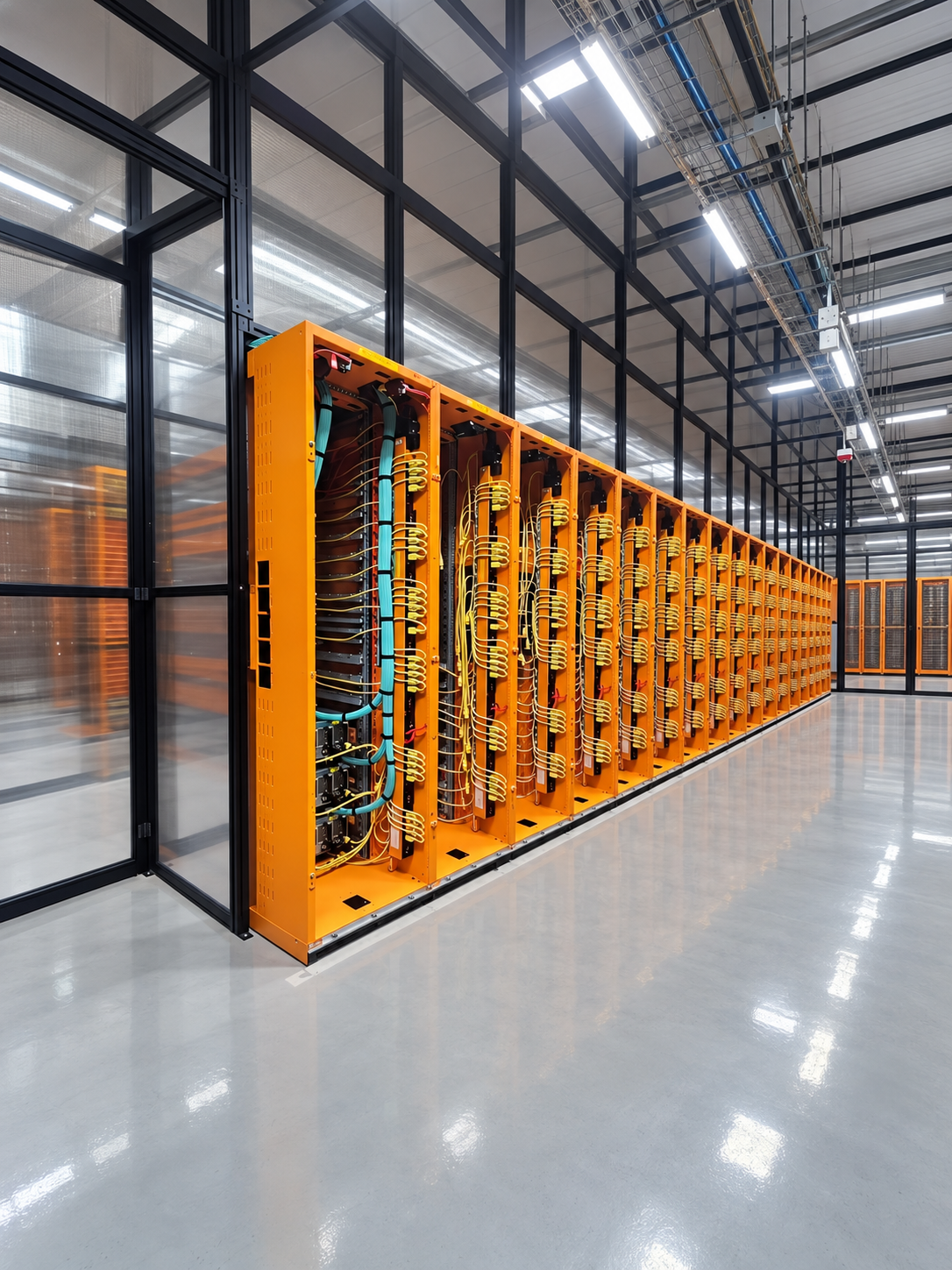

Data Center

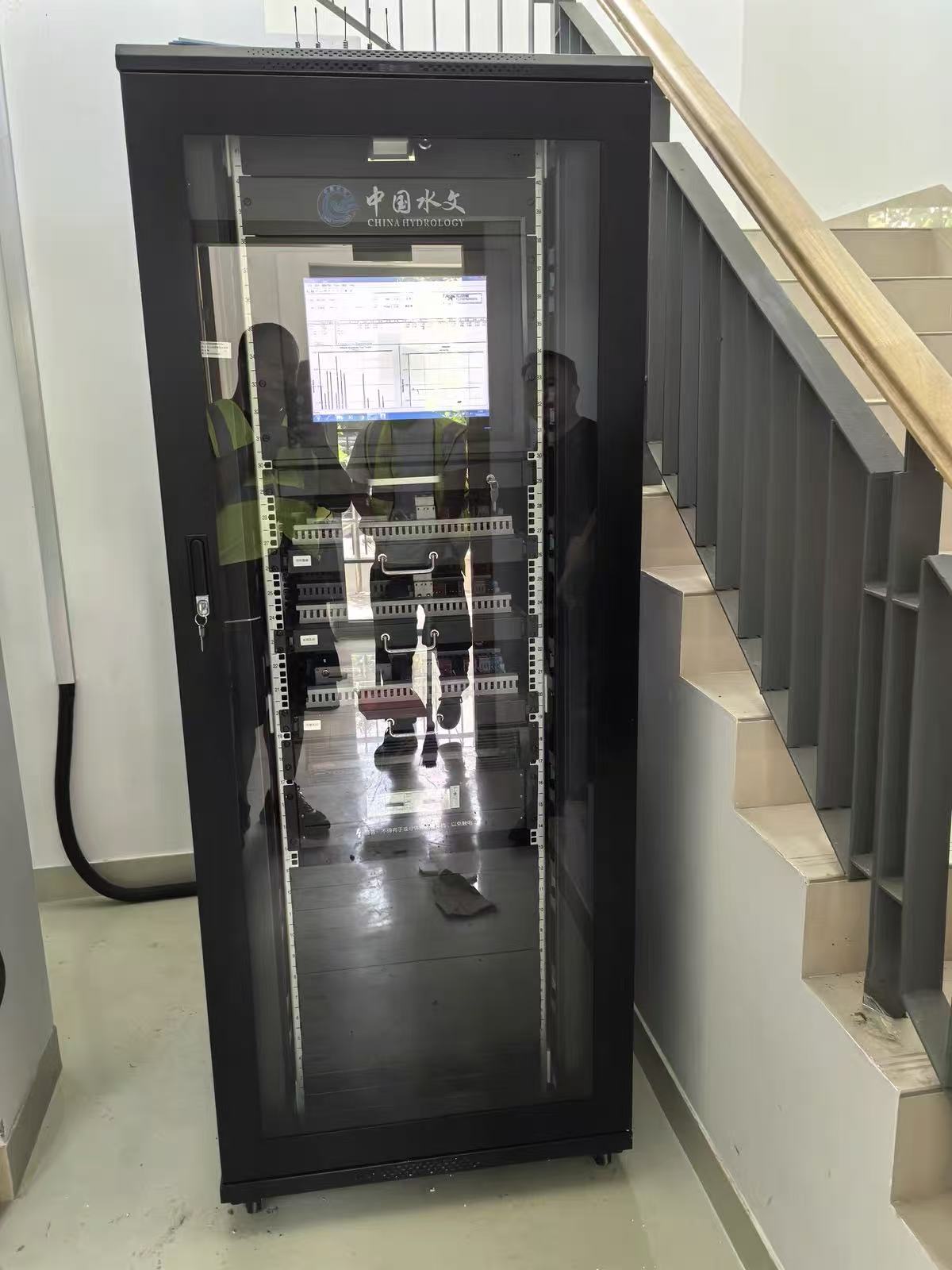

Enterprise Data Center
Tempered glass doors deployed across 200+ server racks, enabling remote visual monitoring while maintaining full security.

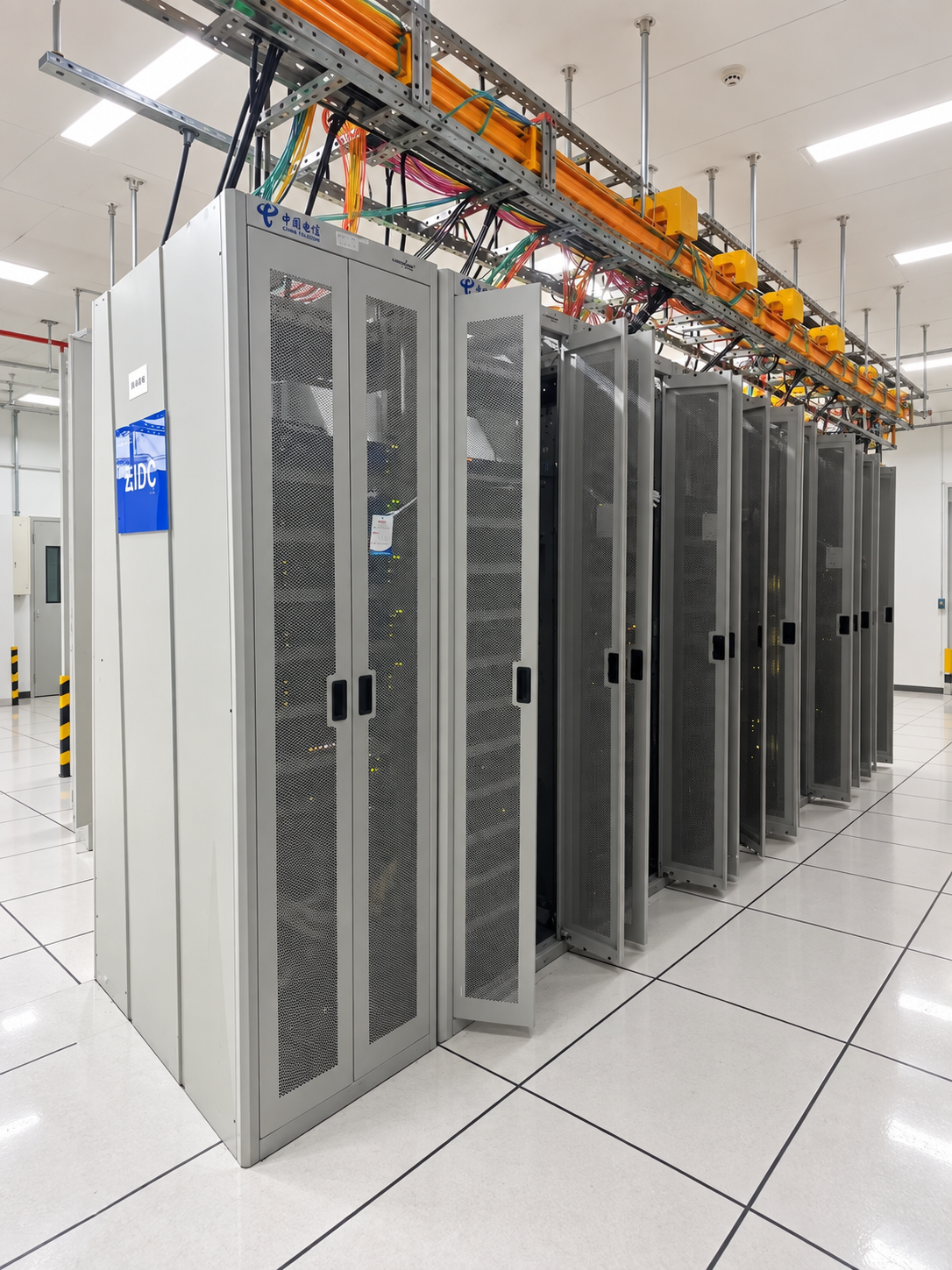

Industrial
Industrial Automation Line
Sealed steel doors with IP65 rating installed on factory floor control cabinets, protecting against dust, oil mist, and vibration.

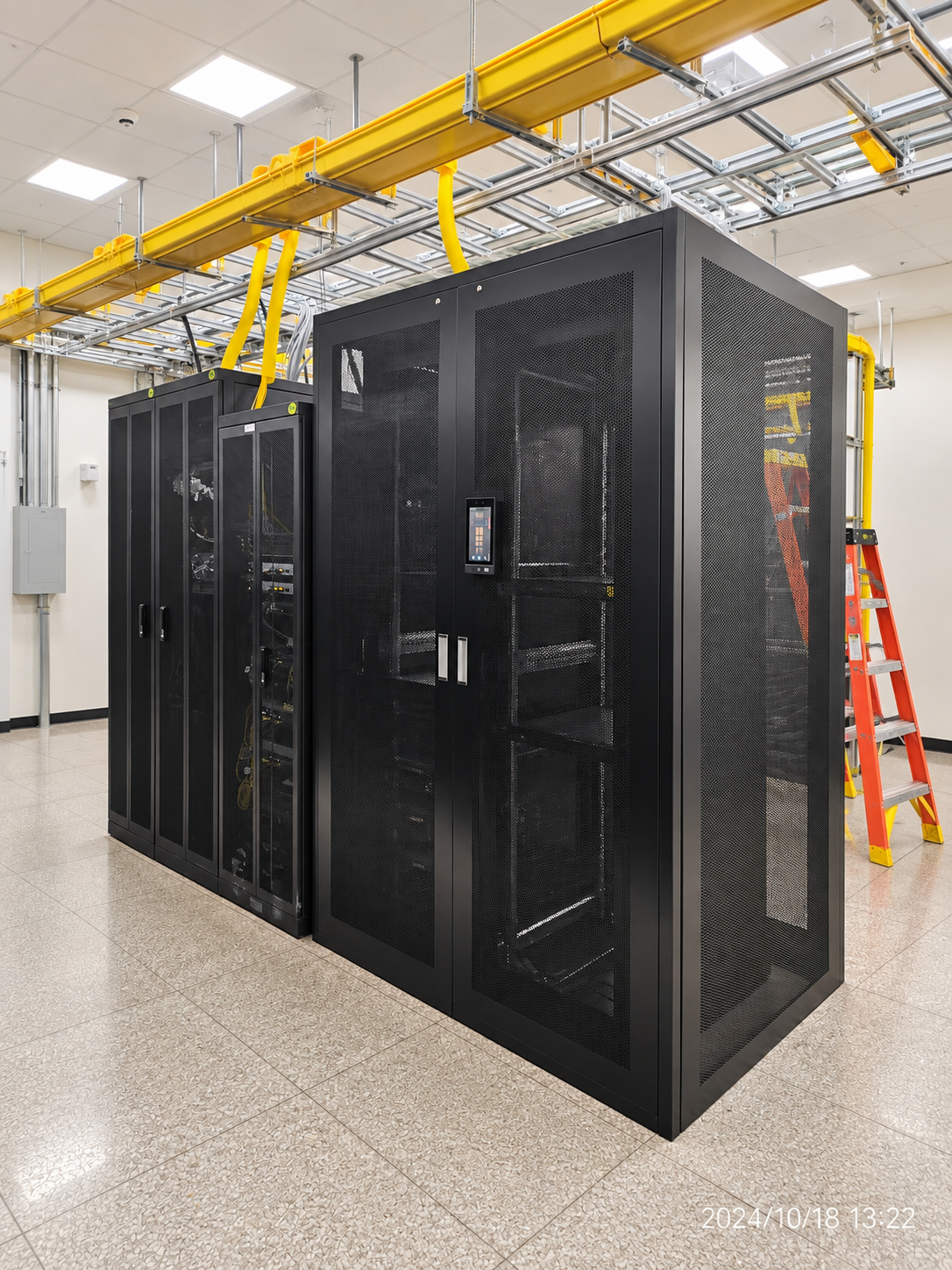

Security

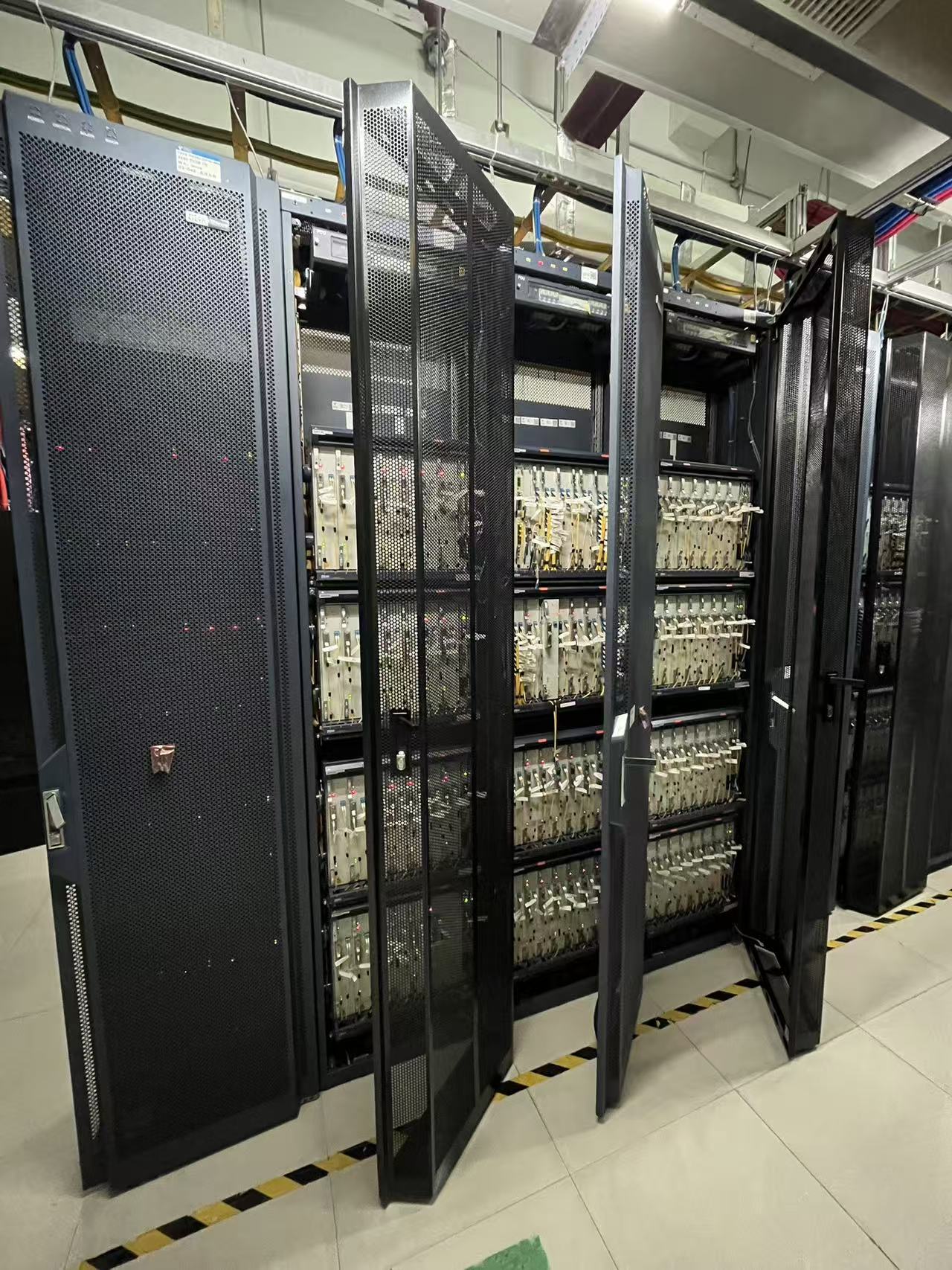

Security Monitoring Center
Convex mesh doors used in security monitoring racks for optimal airflow around high-density DVR and NVR equipment.
Network
Office Network Wiring Closet
Acrylic panel doors on wall-mounted cabinets in office environments, providing a clean aesthetic with equipment visibility.

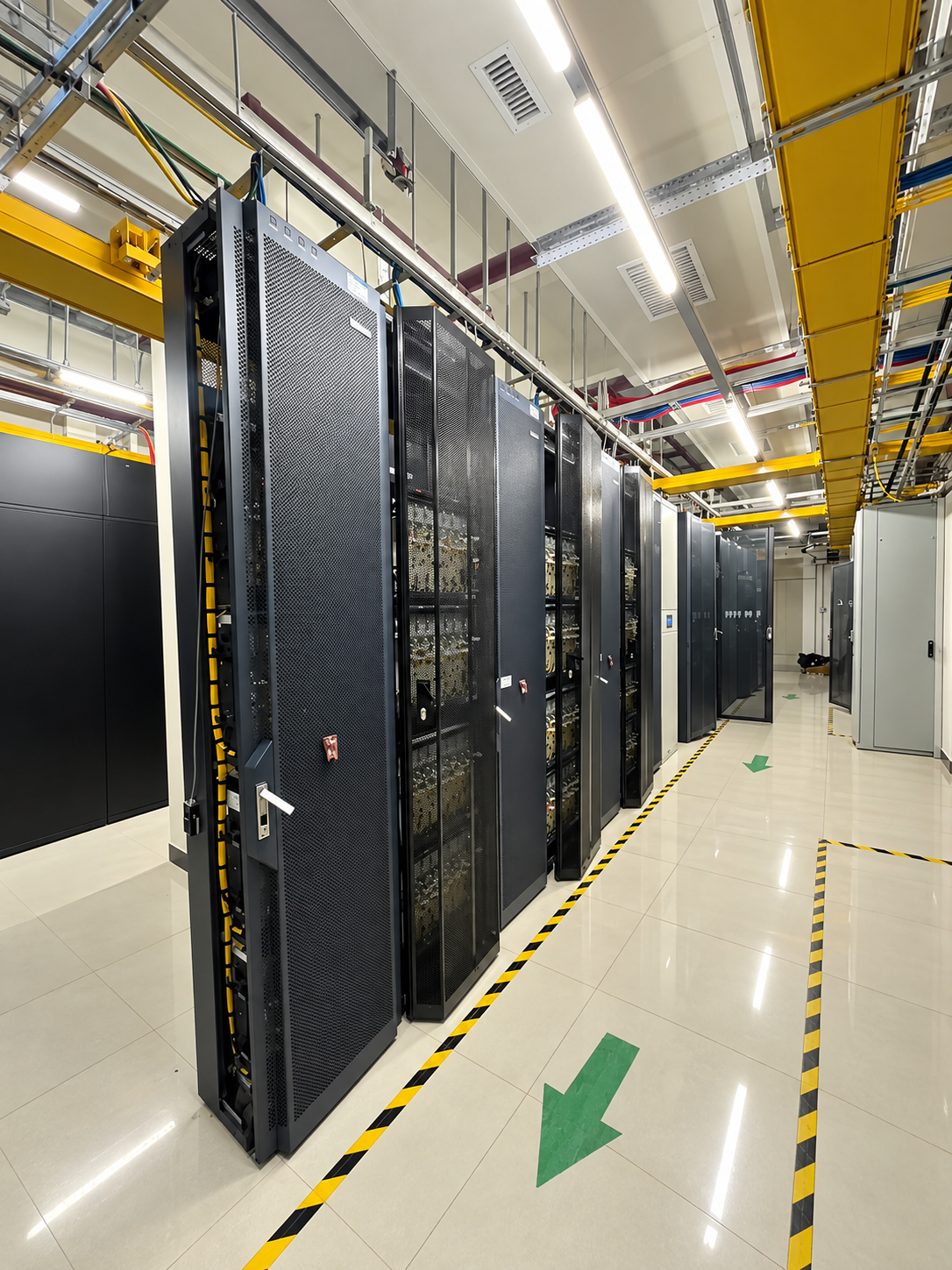

Energy

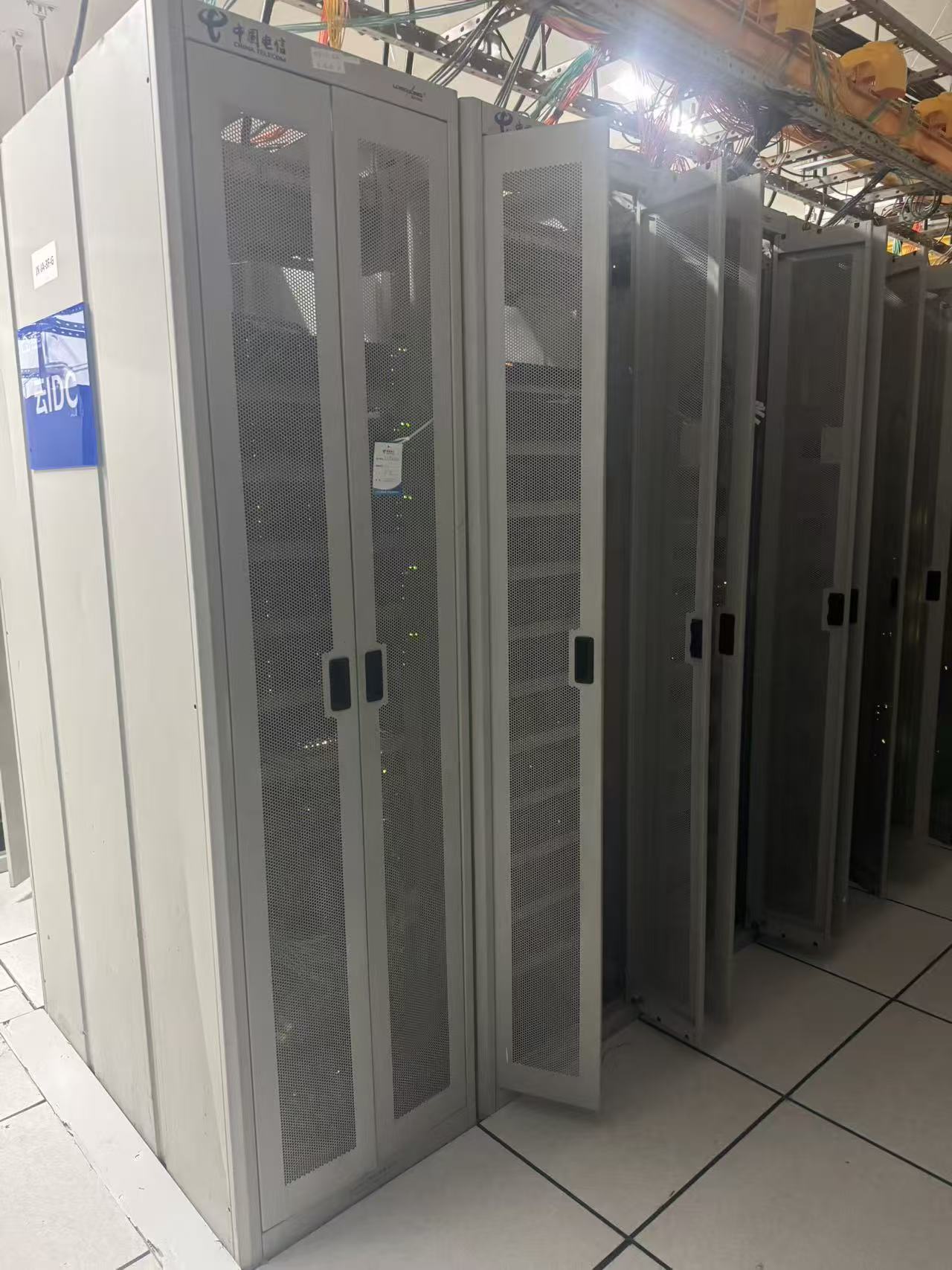

Power Distribution Cabinet
Double-swing flat mesh doors on large power distribution enclosures for easy front access and maintenance in substation environments.

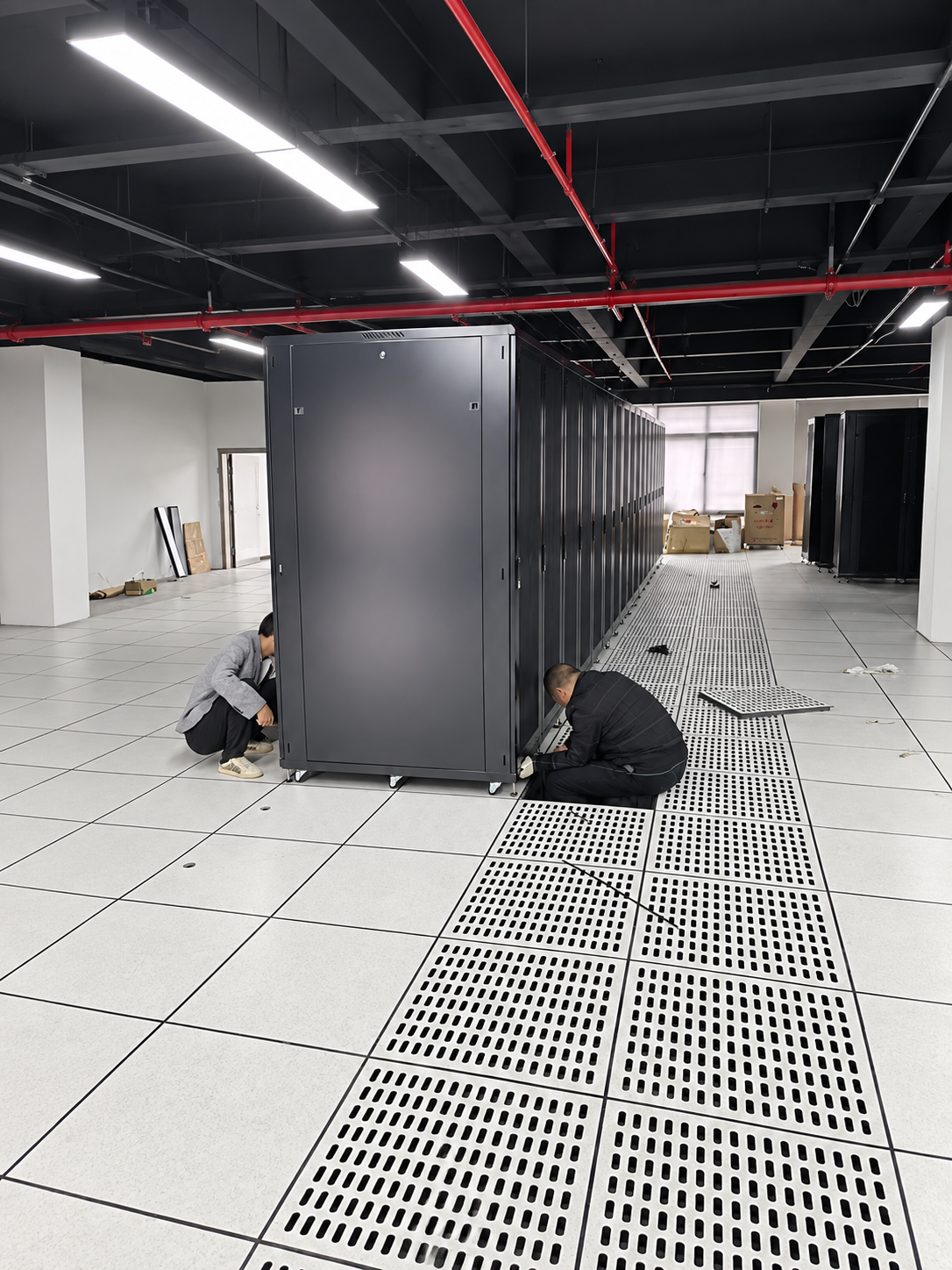

Outdoor
Cold Aisle Machine Room Double Tempered Glass Door
Modular prefabrication, rapid on-site assembly. Non-standard customized to fit standard network cabinet aisles. Available in manual / automatic / sliding double-opening styles, with threshold-free design.
25+
Years in Manufacturing
50+
Countries Served
10,000+
Custom Orders Fulfilled
MOQ 1
No Minimum Order Quantity
Factory Production Workflow
From raw material to finished product, every door panel passes through our rigorous multi-stage production and quality control process, ensuring precision, consistency, and reliability.

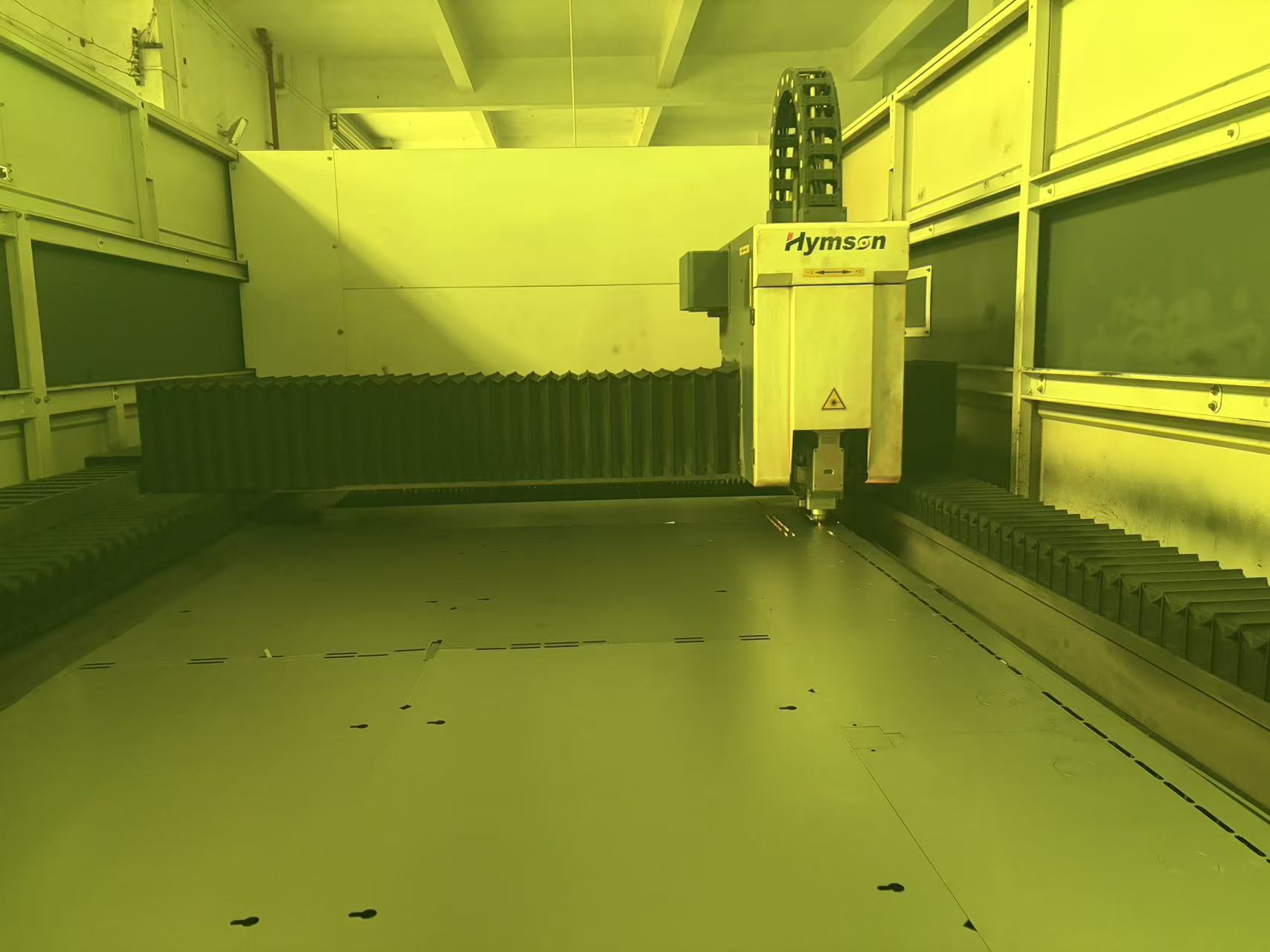

Laser Cutting
High-precision CNC laser cutting of cold-rolled steel, stainless steel, and galvanized sheets with ±0.1mm accuracy.

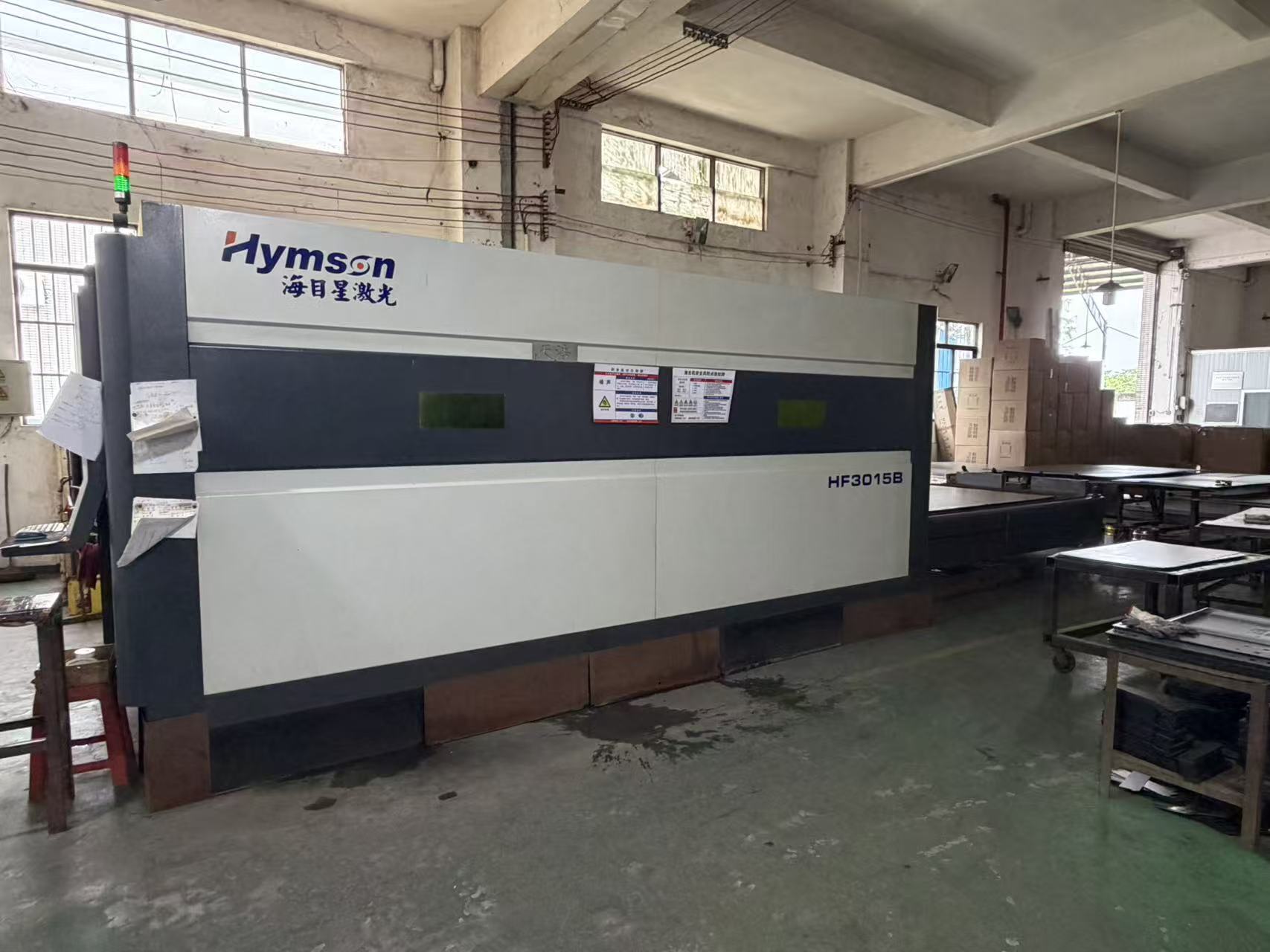

CNC Punching
Automated CNC turret punching for mesh perforations, cable entry holes, and custom ventilation patterns.
CNC Bending
Precision press-brake bending to form door frames, flanges, and convex mesh profiles to exact dimensional specifications.

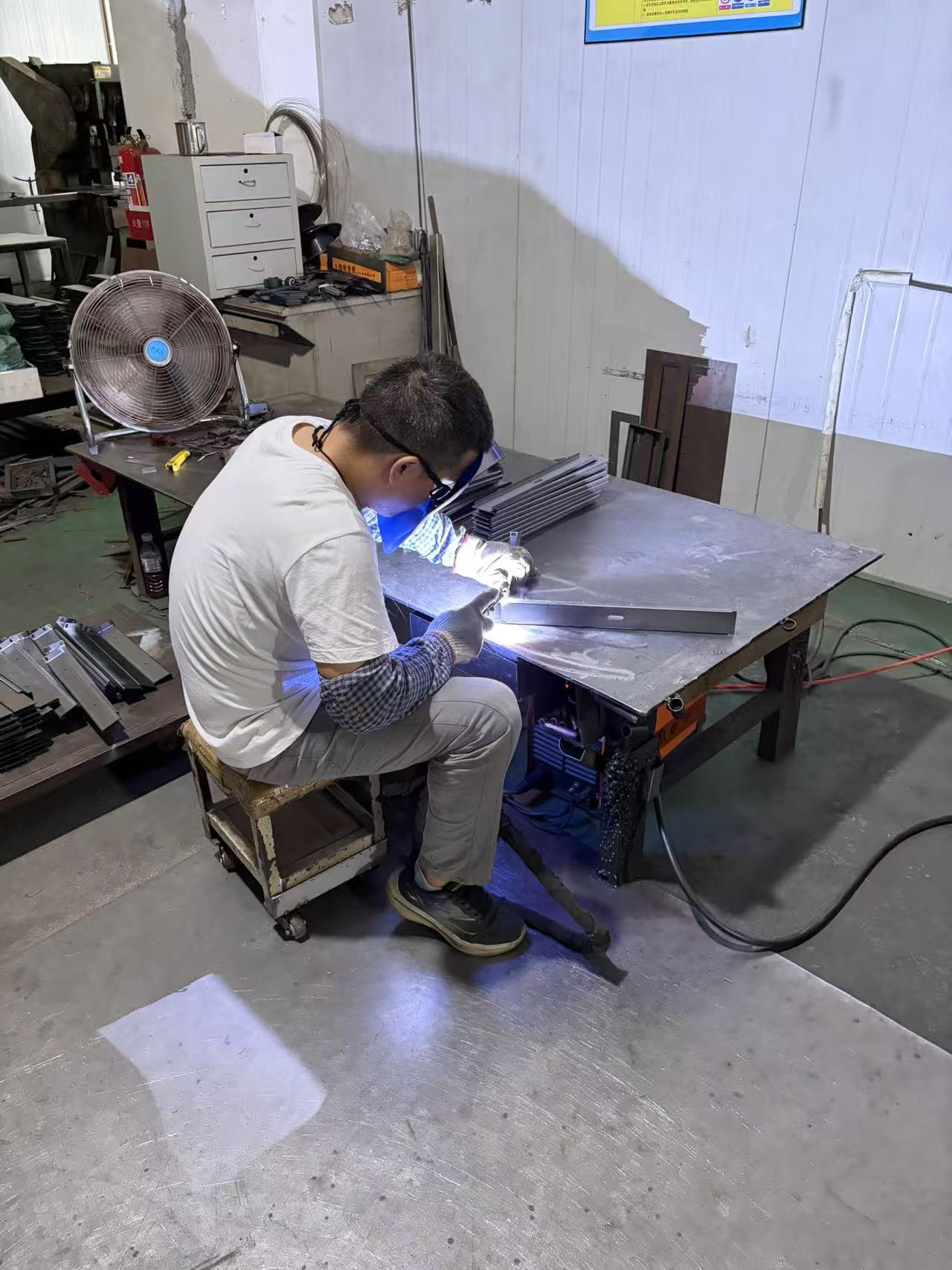

Precision Welding
MIG/TIG welding for door frame assembly and hinge attachment, with full-seam or spot welding options based on structural requirements.
Electrostatic Powder Coating
Pre-treatment phosphating followed by electrostatic powder coating in RAL custom colors, cured at 200°C for maximum adhesion and durability.

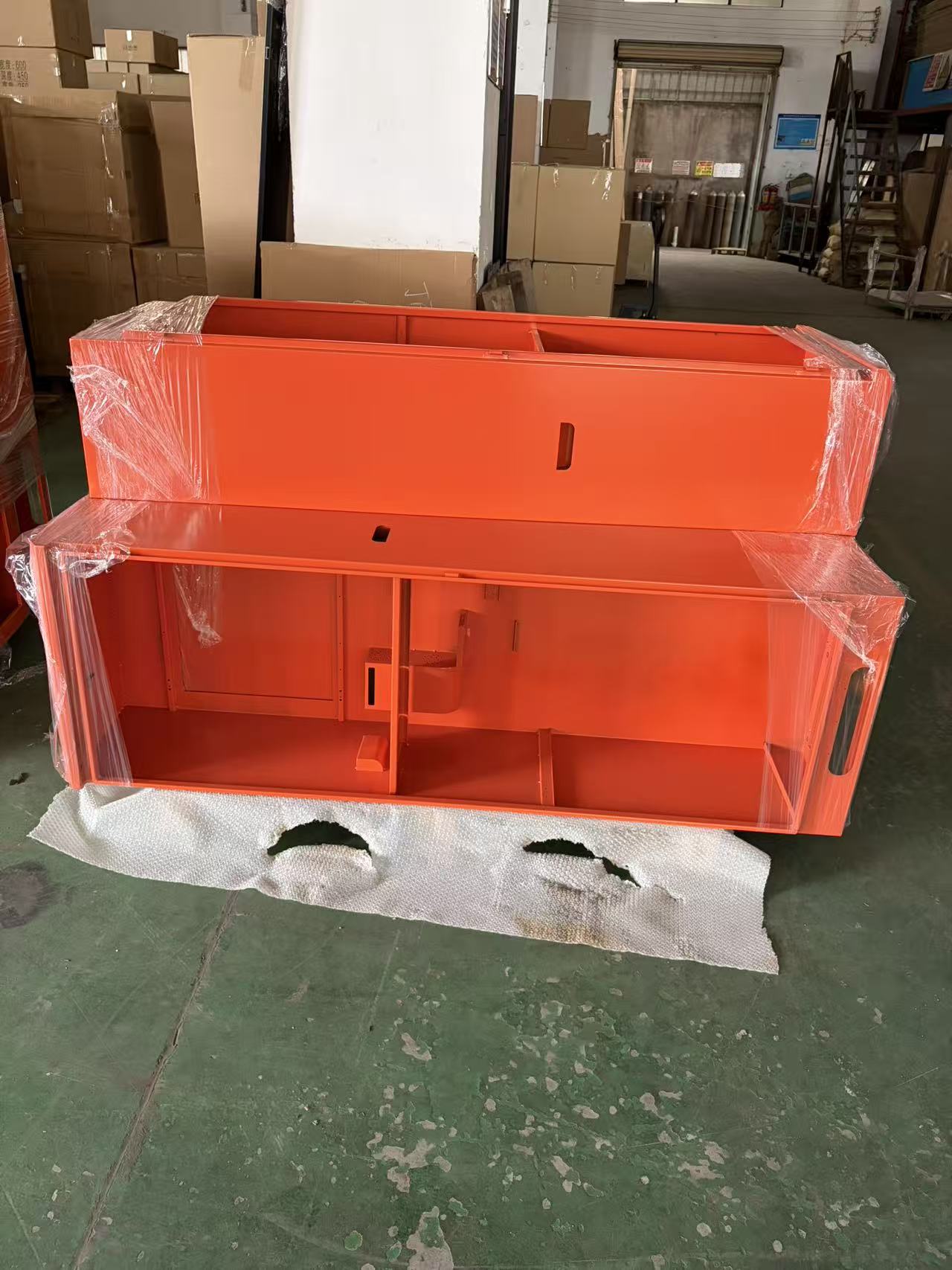

Quality Inspection
Final dimensional verification, surface finish inspection, and functional testing to ensure every panel meets strict quality standards before shipment.
Ready to Start Your Custom Door Order?
From single-piece prototypes to large-scale production runs, our flexible manufacturing model ensures fast turnaround and consistent quality. Contact us today for a detailed quote.
Get Your Custom Door Quote
Tell us your requirements for custom doors -- dimensions, materials, finishes, and quantities. Our team will respond within 24 hours with a detailed proposal.
