22U Heavy Duty Server Cabinet, 600×1000×1200mm, Cold Rolled Steel, Glass Door, 19 Inch Standard

22U Server Cabinet, Standard 19-inch Mounting Specification

Specifications

Dimensions: 600mm Width × 1000mm Depth × 1200mm Height

Configuration

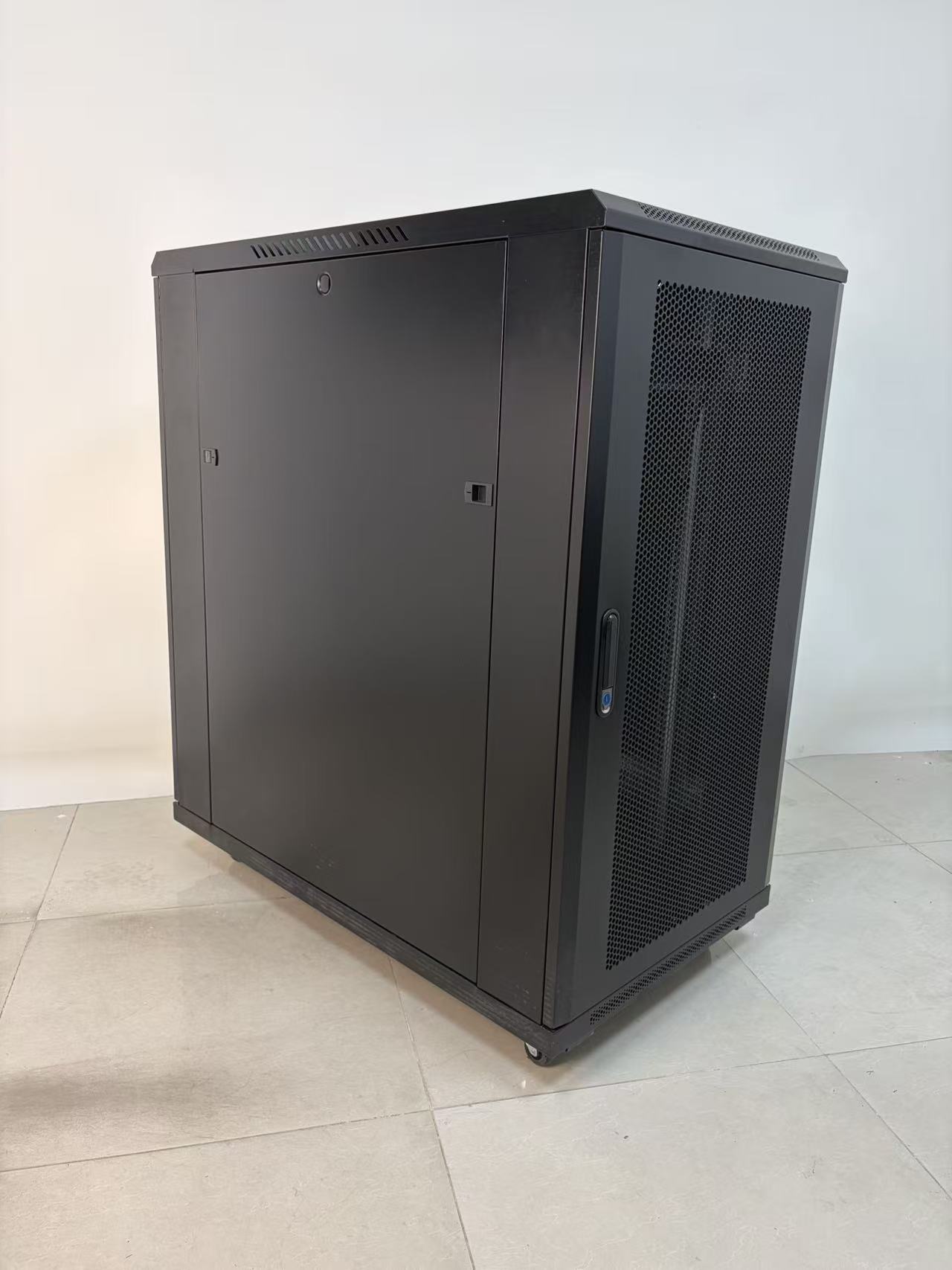

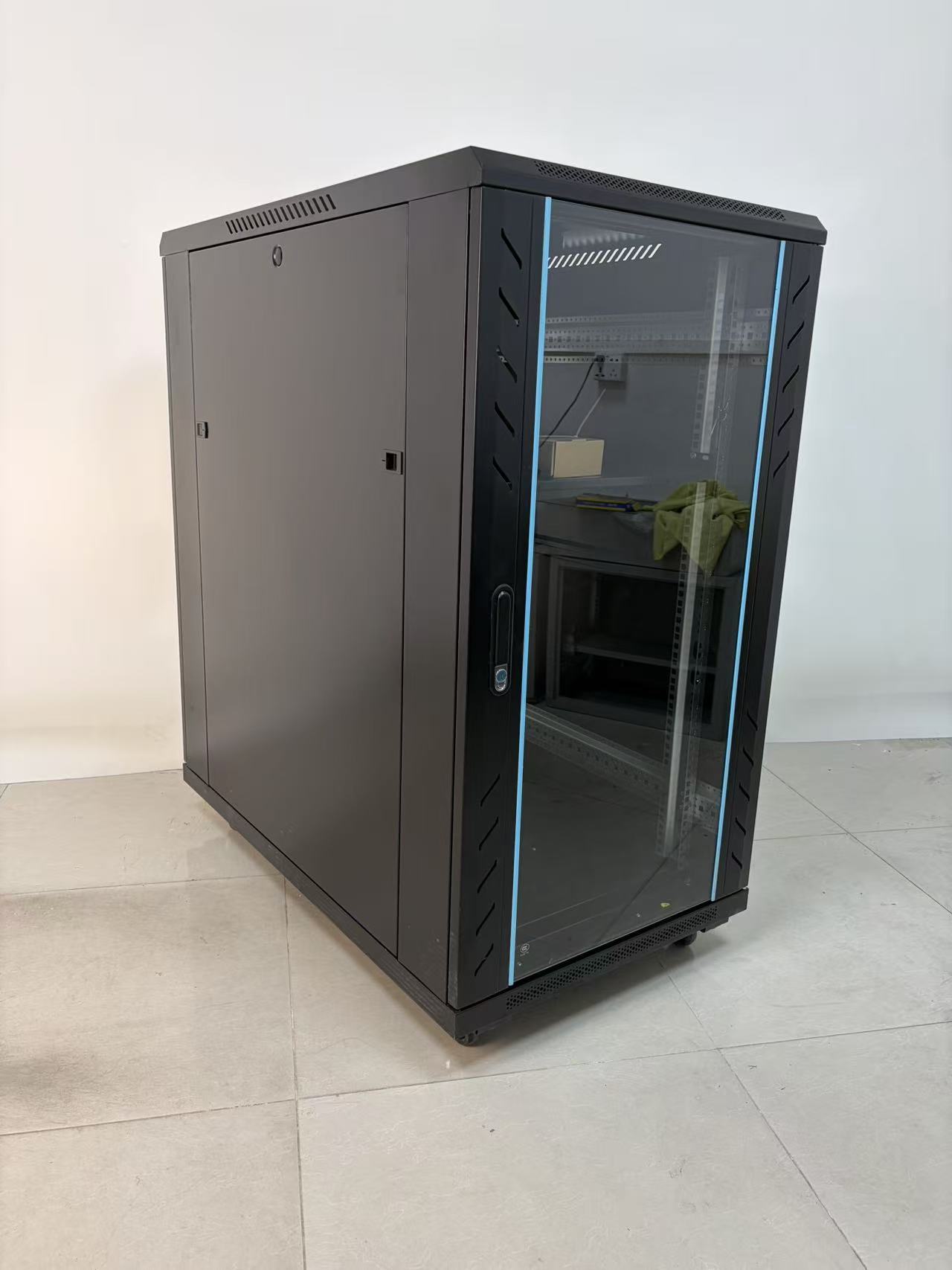

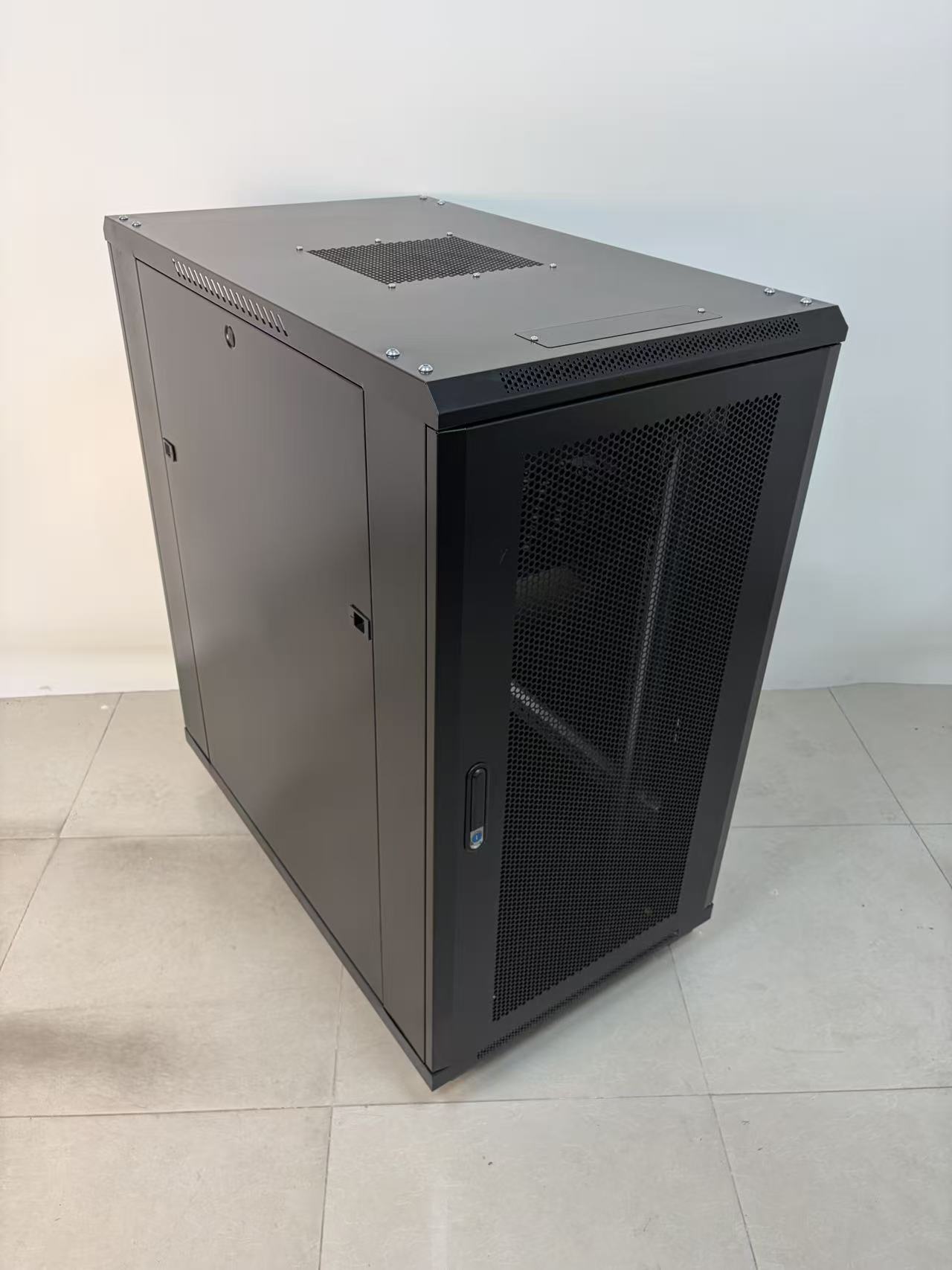

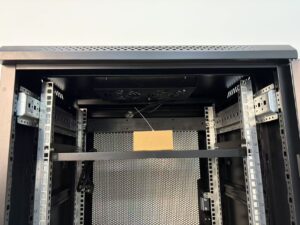

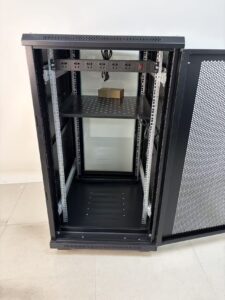

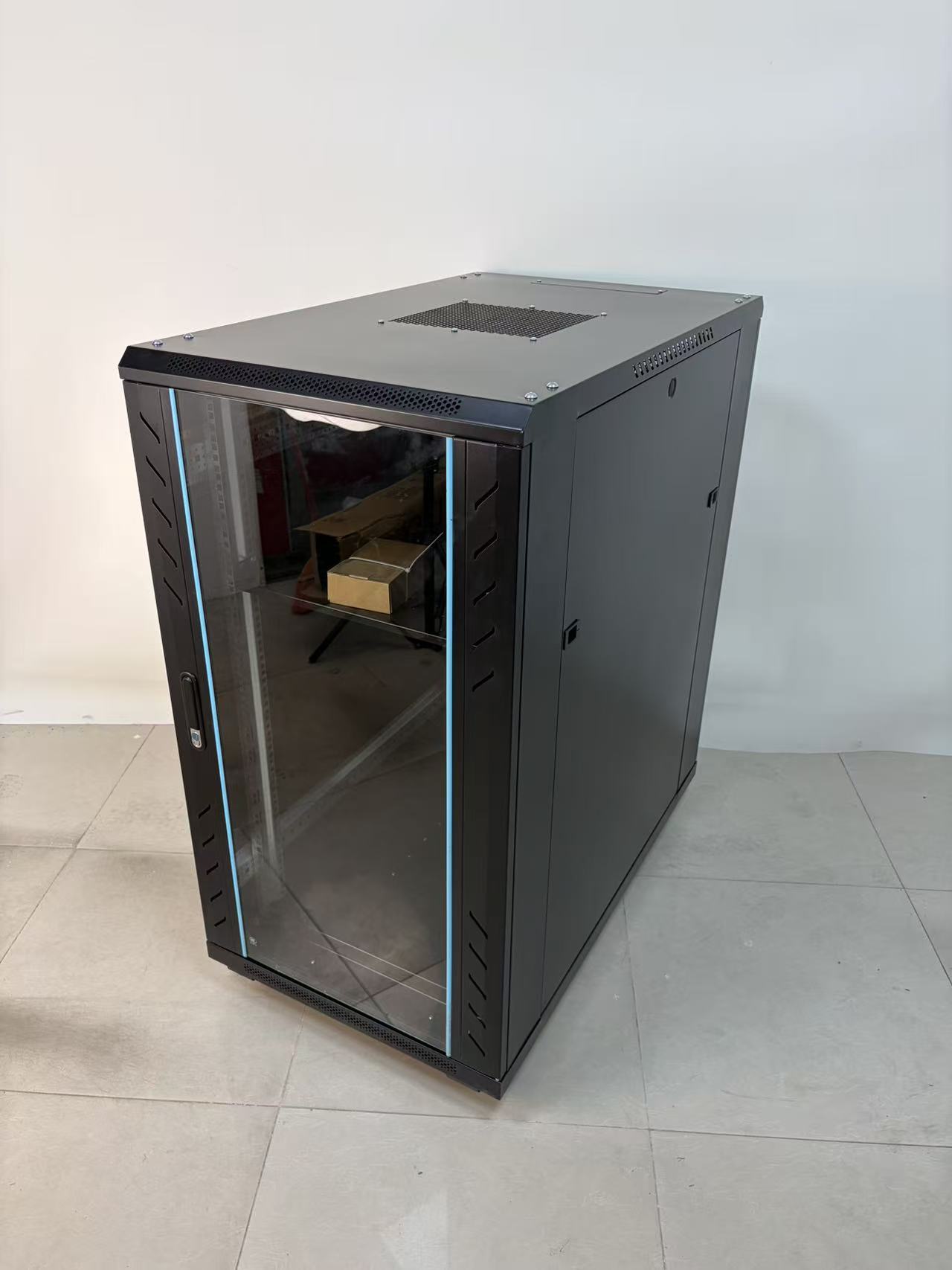

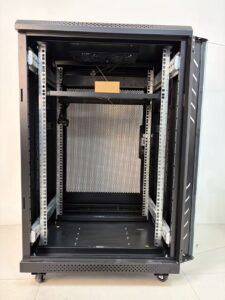

Front door with glass door or mesh door optional; detachable metal left and right side panels; single-opening mesh rear door. Fitted with 2 built-in cooling fans, 1 shelf, 1 piece of 6-port plastic PDU, one set of mounting screws and 4 support feet.

Material

1.5mm thick upright columns, 0.8mm thick cabinet shell plates.

This server cabinet features high load-bearing capacity and optimized ventilation and heat dissipation design. It supports both mobile and fixed installation. Suitable for offices, weak current rooms and large computer rooms, it neatly stores servers and other network equipment. Dustproof, rust-resistant, and easy for installation and maintenance.

The surface is processed by pickling, phosphating and electrostatic spraying, delivering excellent performance in anti-corrosion, rust prevention, wear resistance and easy cleaning.

Packaging

Fully assembled packaging or knocked-down parts packaging are available for transportation.

Color

Multiple color options including black and light gray; customized colors are supported on request.

We provide non-standard customization services. Optional materials include cold-rolled steel plate, stainless steel, galvanized sheet, aluminum alloy and more. Custom plate thicknesses, styles, sizes and special configurations are all available.
